Electrical Unit Converter: Conversions

Convert Coulomb to Milliampere-hour

How to convert Coulomb to Milliampere-hour

Divide the coulomb value by 3.6 to get milliampere-hours, because one milliampere-hour is defined as exactly 3.6 coulombs.¹ Example: 72 C ÷ 3.6 = 20 mAh. To reverse it, multiply milliampere-hours by 3.6.

Common Coulomb to Milliampere-hour conversions

The two faces of electrical charge measurement

Charge looks different depending on whether you are reading a physics textbook or a battery datasheet, and both views describe the same underlying quantity even though they use different units. The difference is not in the physics but in the audience each unit was chosen to serve, and recognising that difference helps you move confidently between the two worlds without second-guessing the arithmetic.

Fluency in both systems matters because designers and physicists regularly share schematics and test reports in which the other person's preferred unit appears without warning. A quick mental conversion keeps the conversation productive instead of derailing into a unit-definition sidebar. The habit of translating on the fly also prevents the silent errors that accumulate when a team assumes everyone is working in the same unit system, only to discover a factor-of-1000 mismatch at integration time.

The coulomb serves the physicist's who wants equations to balance cleanly, while the milliampere-hour serves the product designer who wants to know how long a device will operate before it needs recharging, and neither unit is more correct than the other. They simply optimise for different tasks, and fluent conversion between them is what makes a well-rounded engineer comfortable working across both domains.

Why charge has two practical unit systems

The coulomb is the SI unit of electric charge, defined as the quantity of charge moved by a current of one ampere flowing for one second.² It belongs to the formal system used in physics and electrical engineering for deriving quantities from first principles, and it keeps the equations clean when you are working with force, energy, and field strength. The milliampere-hour is a commercial unit that battery manufacturers adopted because it relates directly to the product specification that matters most to a buyer: how long a device will run on a single charge. Together the two units cover everything from sub-microcontroller sleep currents to multi-kilowatt-hour electric-vehicle packs, and converting between them is a routine task in any electronics workflow.

Keeping both units in view pays off the moment you leave the textbook. A circuit simulation reports charge in coulombs while the bill of materials lists the same cell in milliampere-hours, and the conversion is what lets those two documents describe the same part without contradiction. That same bridge also lets you compare a supercapacitor spec sheet quoted in farads against a lithium cell rated in milliampere-hours by converting both to coulombs first, which is the only common currency that makes the comparison honest.

The factor that connects them

One milliampere-hour represents the charge transferred by a current of one milliampere sustained for exactly one hour. Because one hour holds 3600 seconds and a milliampere is one thousandth of an ampere, the product is 0.001 × 3600 = 3.6 coulombs. The arithmetic is straightforward, but the reason it matters is that this single number is the only bridge you need between the coulomb world of physics and the milliampere-hour world of battery marketing.

That factor of 3.6 is the only number you need to move between the physicist's world and the battery label. There is no approximation in it; it follows from the SI definitions of the second and the ampere, both of which have been fixed by physical constants since the 2019 revision to the International System of Units. The same factor applies whether you are converting a single coin cell or a multi-kilowatt-hour electric-vehicle pack.

Where this conversion appears in daily electronics work

Product designers and test engineers encounter the coulomb-to-milliampere-hour conversion whenever a battery must be sized, rated, or compared against a competing energy-storage technology. The need shows up in everyday tasks like choosing a cell for a remote sensor or validating a supplier's capacity claim, and getting the units right prevents costly mistakes at the prototype stage.

Battery sizing is the most common situation where coulombs and milliampere-hours must be reconciled. A sensor node that draws 2 milliamperes for 500 hours needs a 1000 mAh cell. In coulombs that same requirement is 1000 × 3.6 = 3600 coulombs, which is the form used when calculating the charge a battery-management IC must track across charge and discharge cycles. The chip integrates current in ampere-seconds and reports the accumulated total in coulombs, so converting the cell's milliampere-hour rating to coulombs is the first step in configuring any gas-gauge register.

Electrochemists testing anode and cathode materials report specific capacity in milliampere-hours per gram for easy comparison with cell datasheets, but the underlying electrochemical theory connects through the Faraday constant, which is expressed in coulombs per mole. Designers of supercapacitors work with coulombs because capacitor sizing equations use charge directly, yet their applications often compete with lithium cells rated in milliampere-hours, forcing a translation at the system boundary.

CapyToolkit handles that translation in your browser so you can move between the two worlds without reaching for a calculator. A designer comparing a 3000 mAh pouch cell against a 100 F supercapacitor at 2.7 V can express both in coulombs and see the energy storage difference immediately, which makes it straightforward to decide whether the supercapacitor can replace the cell or merely supplement it during peak current demands.

How battery testers measure charge in both units

Test equipment and quality-control processes move between coulombs and milliampere-hours many times during a single cell evaluation, and understanding how that translation happens keeps you in control of the data. A battery tester integrates current over time in ampere-seconds to measure actual charge delivered, then multiplies by 1000 and divides by 3600 to report milliampere-hours. The raw SI unit is coulombs. A cell under test that delivered 10,800 coulombs passed 3000 milliampere-hours through the load, and the display shows 3000 mAh because that is what the product specification calls out. The conversion happens inside the firmware, and knowing that lets you trace a displayed milliampere-hour figure back to the underlying coulomb count whenever a reading looks suspicious. When a result does not match your expectation, you can work backward from the displayed value to the raw register reading and pinpoint where the discrepancy originates.

Understanding both representations lets you read a test report, compare it against the cell datasheet, and catch discrepancies without confusion over units. If a tester reports 2800 mAh but the cell is rated at 3000 mAh, the shortfall shows up immediately; converting to coulombs (10,080 C versus 10,800 C) confirms whether the tester or the cell is the outlier. A difference that small often points to a calibration offset in the test fixture rather than a genuine cell defect, and catching that early prevents a whole batch of parts from being needlessly rejected.

This kind of cross-check becomes second nature once you keep the 3.6 factor in mind, and it pays off every time a new cell chemistry or a new test fixture enters your workflow. The habit of converting both ways, coulombs to milliampere-hours and back, catches errors that would otherwise survive review and end up in a production test specification. Building that habit takes only a few deliberate practice runs, and once it becomes automatic you will spot unit inconsistencies almost instinctively.

Why the factor 3.6 is exact

The conversion factor is not a measured constant or an empirical fit. It follows directly from definitions that the International System of Units fixed by physical constants, and understanding why helps you trust the math behind every battery calculation you perform. The certainty matters because it means any discrepancy you find in a conversion result comes from the input value, not from the factor itself.

The definitions behind the number

One hour is exactly 3600 seconds and one milliampere is exactly 0.001 amperes by SI prefix convention, so one milliampere-hour is exactly 0.001 × 3600 = 3.6 coulombs. There is no approximation anywhere in this derivation. The second is defined by the caesium hyperfine transition frequency and the ampere by the elementary charge, so the factor 3.6 is anchored to universal constants rather than to any particular battery chemistry or manufacturer.

It follows from the SI definitions of the second and the ampere, both of which have been fixed by physical constants since the 2019 revision to the International System of Units.³ The practical upshot is that you can trust the factor 3.6 regardless of which battery chemistry, manufacturer, or capacity range you are working with. It is the same for a 200 mAh coin cell as it is for a 100 ampere-hour automotive battery.

What the tolerance on a battery spec really means

Any rounding you see in battery specifications comes from the manufacturing tolerance of the cell, and understanding where that rounding lives helps you read a datasheet with confidence. The math is always exact. A cell rated at 3000 mAh might deliver 2950 or 3050 in testing, but the 3.6 factor used to convert its capacity to coulombs remains precise to every decimal place. That distinction matters when you are auditing a supplier's datasheet or investigating a field failure, because the conversion factor itself is never the source of the discrepancy you are looking for.

Charge units adjacent to this conversion

The milliampere-hour is not an isolated unit. It sits between the microcoulomb and the ampere-hour on the charge scale, and understanding all three prevents prefix confusion when you move between circuit diagrams, component datasheets, and system-level energy budgets. Each prefix covers a different order of magnitude, and keeping them straight saves you from the kind of conversion error that is hard to spot until a design is already committed.

Moving up, one ampere-hour holds 3600 coulombs⁴, and ampere-hours appear on lead-acid car batteries, solar charge controllers, and industrial UPS units. Moving down, the microcoulomb equals 10^-6 coulombs⁵ and covers electrostatic sensors, piezo actuators, and MEMS devices where tiny charge packets are measured directly in the SI unit. Keeping all three prefixes straight prevents the kind of factor-of-1000 error that quietly breaks a design before it reaches the prototype stage.

Keeping the factor in mind prevents arithmetic mistakes

For everyday battery work, milliampere-hours and coulombs are the pair you encounter most. Keeping the 3.6 factor in mind as you switch between datasheet figures and circuit calculations prevents the arithmetic mistakes that slow down hardware bring-up. A quick mental check can catch a misplaced decimal point before it propagates through a bill of materials or a charge-profile spreadsheet.

CapyToolkit runs this conversion in your browser, so the values stay on your screen and never leave your device, which matters when you are working with proprietary cell capacity data during product development. The same privacy property holds when you share a conversion result with a colleague and do not want the value to pass through an intermediate server.

Tools and instruments that use both units behind the scenes

Commercial instruments and proprietary test systems handle the translation between coulombs and milliampere-hours automatically, but understanding what happens behind the display keeps you in control of the data and helps you trace a reading back to the raw measurement. Many test instruments report capacity in milliampere-hours at the user interface but accumulate charge internally in coulombs. Battery analysers, formation cycling systems, and automated test equipment all use SI quantities in their calculation engines and translate to milliampere-hours only for display. That translation layer is where small rounding differences creep in, and knowing the exact 3.6 factor lets you reconcile a displayed value against a raw register reading without guessing.

Knowing the 3.6 factor lets you verify readings by mental arithmetic and catch calibration drift before it causes a product reject. A discrepancy of one or two milliampere-hours is rarely meaningful on its own, but a consistent offset across a batch of readings often points to a test-fixture calibration issue that would otherwise go unnoticed and lead to a false rejection of good parts.

CapyToolkit runs this conversion in your browser, so the values stay on your screen and never leave your device, which matters when you are working with proprietary cell capacity data during product development. A formation cycle report that reveals your competitor's exact capacity in coulombs is not something you want passing through a third-party server, and keeping the conversion local protects that information from interception. CapyToolkit performs the arithmetic entirely in the browser, so the proprietary cell capacity figures never leave your machine. That privacy guarantee holds for every conversion you run, whether you are working with a single coin cell or a large battery pack, and no conversion value is ever transmitted to an external server, so your proprietary cell data stays confidential throughout the entire workflow.

Try in the tool

Convert Milliampere-hour to Coulomb

How to convert Milliampere-hour to Coulomb

Multiply the milliampere-hour value by 3.6 to get coulombs, because one milliampere-hour equals exactly 3.6 coulombs.¹ Example: 500 mAh × 3.6 = 1800 C. To reverse it, divide coulombs by 3.6.

Common Milliampere-hour to Coulomb conversions

Battery capacity and the underlying SI quantity

Battery datasheets quote capacity in milliampere-hours because that number speaks directly to run time, but the underlying physical quantity is electric charge, and converting between the two views is essential for anyone who works with batteries beyond the marketing specification. The conversion is simple arithmetic, yet it bridges two worlds that rarely speak the same language.

From run-time labels to SI charge

When a battery datasheet quotes capacity in milliampere-hours, it is answering the question every product designer asks first: how long will this cell last. Dividing that capacity by the current draw in milliamperes gives run time in hours with no extra conversion. The underlying physical quantity, though, is electric charge, and its SI unit is the coulomb.² Converting milliampere-hours to coulombs lets you plug battery capacity directly into equations derived from first principles, whether you are calculating Joule heating across an internal resistance or writing the charge-state model in a battery management algorithm.

The exact multiplier

The conversion is multiply by 3.6, since one milliampere-hour is one thousandth of an ampere applied for 3600 seconds. This step is exact, not empirical, because it follows from the definitions of the hour and the milliampere, both of which are anchored to universal physical constants rather than to any particular battery design. Any imprecision in a converted figure comes from the cell's manufacturing tolerance, not from the conversion factor itself.

When engineers reach for coulombs in battery work

There are practical situations where milliampere-hours are the wrong unit for the job, and converting to coulombs becomes a daily necessity that separates a working design from one whose numbers never quite add up. Battery-management IC designers, electrochemical test engineers, and power-budget analysts all reach for coulombs because the underlying physics demands it.

Debugging BMS and electroplating calculations

Battery-management IC designers work in coulombs internally because the physics of charge tracking is naturally expressed in ampere-seconds. A coulomb counter on a BMS chip integrates current in ampere-seconds and increments a register in coulombs; it divides by 3600 and by 1000 to display the value in milliampere-hours for the user. Understanding this pipeline helps you debug state-of-charge discrepancies by comparing the raw coulomb register against the displayed milliampere-hour figure.

Plating and Faraday's law

Electroplating calculations use coulombs because Faraday's first law states that the mass of metal deposited is proportional to the total charge in coulombs. A plating-bath spec given in milliampere-hours must be converted to coulombs before entering the Faraday formula. The same conversion also lets you compare test reports, cell datasheets, and simulation logs without reinterpreting the same capacity in three different ways, which saves time when you are evaluating multiple cell candidates or cross-referencing a datasheet against a prototype measurement.

Scale expectations for converted values

A quick sanity check against known cell capacities catches conversion errors before they propagate into a design or a test report, and building a small library of reference values for common cell types is one of the most effective habits you can develop. The reference values do not need to be exact; even a rough order-of-magnitude figure for each common chemistry is enough to spot a wrong conversion.

Order-of-magnitude checks

A typical AA alkaline cell is rated at about 2500 mAh, which converts to 9000 coulombs. A small rechargeable lithium polymer pouch at 300 mAh holds 1080 coulombs. A 20 Ah lithium iron phosphate cell used in e-bikes and solar storage contains 72,000 coulombs. If your converted figure is in the right order of magnitude for the cell type, the conversion is probably correct, and keeping a few reference values in mind makes it easy to spot a wrong result before it propagates into a design.

Spotting factor-of-1000 errors

A result many times smaller or larger than expected usually signals that you used the wrong factor or confused milliampere-hours with ampere-hours, which differ by a factor of 1000. A quick scale check is especially useful when a spreadsheet mixes mAh, Ah, and C because the labels may be hidden behind named ranges or imported columns, and an experienced engineer keeps a handful of reference cells in mind precisely to catch those unit confusions before they propagate beyond the first calculation.

CapyToolkit converts milliampere-hours to coulombs so you can sanity-check a suspect figure in seconds, and keeping a few reference cells in mind makes the scale check almost instantaneous without needing to reach for a calculator. Once you have run a handful of conversions, the reference values become second nature and you will catch errors almost without thinking.

Connecting milliampere-hours to charge-rate language

Charge-rate specifications add another layer to the conversion story, because C-rate labels hide the same coulomb-per-second arithmetic behind a different notation. Understanding that 1 mAh = 3.6 C also helps when reading charge-rate specifications. A 0.5 C charge rate on a 2000 mAh cell means the charger delivers 1000 milliamperes, which is 1 ampere, which adds 3.6 coulombs every second. Fast-charge protocols advertised as 2 C or 4 C rates can then be understood in terms of coulombs per second flowing through the cell's internal chemistry, and the same reasoning lets you estimate how long a fast-charge cycle will take at a given C-rate.

Keeping the SI view alongside the battery-industry view lets you cross-check numbers from application notes, academic papers, and product teardowns without being confused by inconsistent unit choices.³ An application note quoting a 3 C fast-charge limit and an electrochemical model predicting lithium plating at 10 µA per square centimetre describe the same physical process in completely different units, and reconciling those two descriptions is a routine task in battery engineering.

Instruments that work in coulombs and display milliampere-hours

Test instruments and production equipment handle the unit translation automatically, but the engineering rationale behind that translation is worth understanding. Many test instruments report in milliampere-hours⁴ at the user interface but accumulate charge internally in coulombs⁵. Battery analysers, formation cycling equipment, and automated cell graders all use SI quantities in their calculation engines and translate to milliampere-hours only at the display layer, which means a miscalibration in the conversion factor can propagate silently through an entire production test run.

Knowing the 3.6 factor lets you verify readings by mental arithmetic and catch calibration drift before it causes a product reject. CapyToolkit converts milliampere-hours to coulombs in your browser without sending values to a server, which matters when you are working with confidential cell capacity data during product qualification. A 2500 mAh cell that a tester reports as 2450 mAh has delivered 8820 coulombs instead of 9000; the 180-coulomb shortfall is a 2 percent capacity loss that the unit view makes immediately visible.

Try in the tool

Convert Ampere-hour to Coulomb

How to convert Ampere-hour to Coulomb

Multiply the ampere-hour value by 3600 to get coulombs, because one ampere-hour is one ampere for exactly 3600 seconds.¹ Example: 2 Ah × 3600 = 7200 C. To reverse it, divide coulombs by 3600.

Common Ampere-hour to Coulomb conversions

The ampere-hour in practical battery engineering

Ampere-hour ratings dominate the segments of the battery market where capacities run into the tens or hundreds of ampere-hours, because the numbers stay in a range that is easy to compare and discuss. That practical advantage is why the unit has persisted even though the coulomb is the SI base-derived quantity, and the conversion between the two is a routine task for anyone who works with batteries beyond the hobby level. The ampere-hour is not just a marketing convenience; it is an engineering unit that has earned its place in every automotive, solar, and industrial battery specification written in the last century.

Why larger batteries use ampere-hours

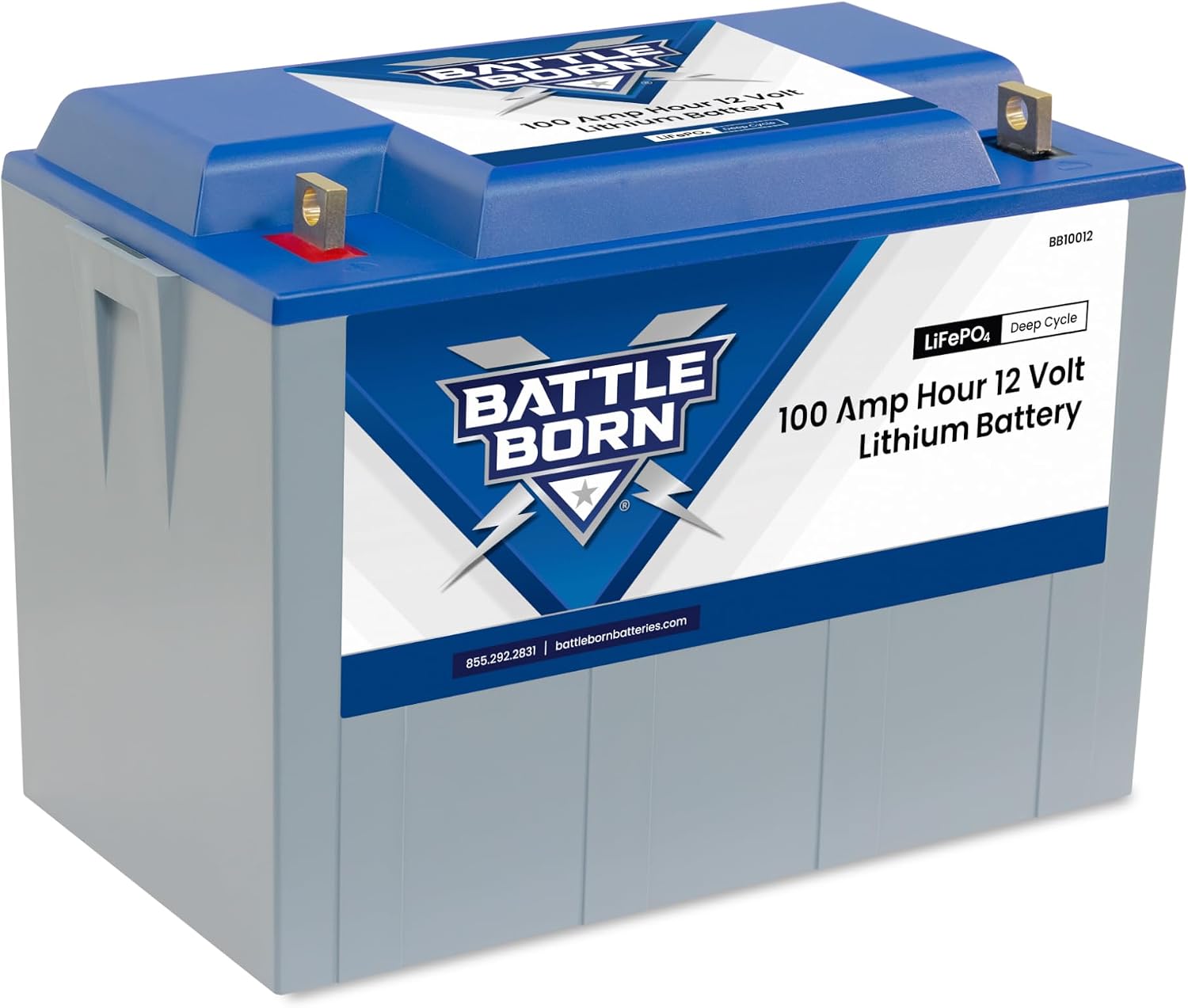

Car starting batteries are rated from 40 to 100 ampere-hours, leisure batteries for caravans run from 80 to 300 ampere-hours, and solar storage systems stack even larger figures by connecting cells in parallel. Industrial uninterruptible power supplies list capacity in kilowatt-hours for energy billing, but the underlying charge rating is always given in ampere-hours at a defined discharge voltage. The ampere-hour keeps the numbers in a range that engineers can compare at a glance without counting zeros.

Bringing practical figures into the SI framework

Converting ampere-hours to coulombs brings these practical ratings into the SI framework, where they combine cleanly with current, voltage, and resistance quantities without unit ambiguity. The conversion factor is 3600, the exact number of seconds in one hour.² It is the same current-time relationship used for milliampere-hours, scaled up by 1000. A 100 Ah battery holds 360,000 coulombs, and that figure plugs directly into Faraday's law, energy calculations, and charge-balancing algorithms in a way that kilowatt-hours alone cannot. The factor 3600 is the only number you need to move between the ampere-hour label on the battery and the coulomb count inside the physics equation. Once you have it memorised, checking whether a quoted capacity is plausible becomes a quick mental exercise rather than a calculator task.

Where Faraday's laws meet the battery label

Faraday's laws connect the ampere-hour rating on a battery label to the mass of active material inside the cell, and that connection runs through coulombs. Converting the label rating to coulombs is the first step in any electrochemical calculation that starts from first principles. Electrochemical stoichiometry connects ampere-hours directly to the mass of active material consumed or deposited, and Faraday's law states that passing one mole of charges requires 96,485 coulombs.

Electrochemical theory in practical units

Electrochemical stoichiometry connects ampere-hours directly to the mass of active material consumed or deposited. Faraday's law states that passing one mole of charges requires 96,485 coulombs.³ A cell reaction consuming one mole of lithium per charge cycle releases 96,485 coulombs, which is 96,485 ÷ 3600 = 26.8 ampere-hours. That relationship is the foundation of theoretical capacity calculations for every lithium-ion cell on the market.

Checking theory against measured results

That figure, 26.8 Ah per mole of lithium, is used in lithium-ion cell design to check theoretical capacity against the measured result from a cycle test, and the comparison is a routine step in cell development that catches design errors before the first prototype is built. Battery chemists who work in SI units need coulombs; cell specifiers who write datasheets for engineers prefer ampere-hours, and the ability to move between the two is a practical skill that every battery engineer develops early in their career.³

Knowing the factor bridges both worlds and saves time when you are reviewing technical documents. It also gives a quick reasonableness check when a lab report quotes capacity in Ah but the model expects coulombs per mole, and running that check takes only a few seconds once you have the conversion memorised. The habit of checking both ways, ampere-hours to coulombs and back, catches errors that would otherwise survive review and end up in a production test specification.

Automotive and solar applications that use this conversion daily

Automotive and solar engineers work with ampere-hours every time they size a battery or predict its behaviour across a drive cycle or a day of variable irradiance. Automotive engineers specify alternator output and battery acceptance rate in amperes and use the 3600 factor when integrating current over a drive cycle to check whether the battery ends the trip at the right state of charge, and solar charge controller sizing starts from panel current in amperes and battery bank capacity in ampere-hours. The coulomb count behind the scenes ensures the controller's algorithm tracks energy through a day of variable irradiance.

Grid-tied battery storage systems report in kilowatt-hours because voltage matters for energy, but the internal cell-level calculations still use coulombs for the charge balance, and everywhere from the garage to the grid, ampere-hours and coulombs must be reconciled. The conversion is small, but it is the hinge between field measurements and first-principles models, and getting it right is what separates a validated design from one that only looked right on paper.

Avoiding the ampere-hour versus milliampere-hour mix-up

The most common conversion error is using the wrong factor, and the similarity between 3.6 and 3600 makes that mistake easy to make. The most common error when converting ampere-hours to coulombs is using 3.6 instead of 3600, which is the factor for milliampere-hours, and a 100 Ah car battery does not hold 360 coulombs but holds 360,000.⁴ If your result looks too small by a factor of 1000, check whether your capacity figure is in ampere-hours or milliampere-hours, because the wrong prefix leads to a result that is off by three orders of magnitude and can silently corrupt an entire design review.

Lead-acid battery datasheets always use ampere-hours, while lithium polymer cells for consumer electronics almost always use milliampere-hours, and lithium iron phosphate cells used in e-bikes and solar storage can appear in either unit depending on the supplier. Confirming the unit prefix before multiplying by 3600 takes two seconds and prevents a thousand-times error that would otherwise propagate through an entire design calculation.

Related conversions that complete the charge picture

Charge and energy are distinct physical quantities, and keeping them separate prevents a class of errors that plague cross-domain design reviews. The distinction matters whenever you compare cells across different voltage platforms or convert between charge-based and energy-based specifications, and confusing the two is one of the most common mistakes in cross-disciplinary power-system design.

Charge and energy are different quantities

Ampere-hours sit one step above milliampere-hours in the charge scale, and they share the same 3600-second-per-hour logic for converting to coulombs.⁵ Moving further up, one joule equals one coulomb times one volt, so a 100 Ah battery at 12 volts stores 1.2 kilowatt-hours of energy as well as 360,000 coulombs of charge. Keeping charge and energy distinct is essential when you are comparing battery specifications across different voltage platforms.

Why keeping both perspectives matters

Those two perspectives, energy in joules or watt-hours versus charge in coulombs or ampere-hours, are both valid and neither is more correct. Keeping the relationships between milliampere-hours, ampere-hours, coulombs, and joules clear lets you move between datasheets, electrochemical papers, and energy management calculations without converting more times than necessary. The ability to move fluently between these units is a practical skill that pays off every time you evaluate a new cell or design a power system.

Try in the tool

Convert Coulomb to Ampere-hour

How to convert Coulomb to Ampere-hour

Divide the coulomb value by 3600 to get ampere-hours, because one ampere-hour is exactly 3600 coulombs.¹ Example: 18000 C ÷ 3600 = 5 Ah. To reverse it, multiply ampere-hours by 3600.

Common Coulomb to Ampere-hour conversions

Reading a battery's charge in SI units

Batteries store charge, and the coulomb is the SI unit for that charge, yet the ampere-hour is what appears on the product label, and converting between the two is what a battery management system does every time it reports state of charge to the user. Electric charge is measured in coulombs in the International System of Units, and every battery's capacity is fundamentally a charge quantity that can be expressed in either unit depending on the audience for the specification.² The ampere-hour, while not an SI unit, dominates product labelling because it matches the scale of practical cells and links naturally to run-time calculations that a buyer can compare at a glance.

How a BMS handles the conversion in firmware

A coulomb counter integrated over a discharge cycle produces a raw coulomb figure, and dividing by 3600 yields ampere-hours that the display can compare directly against the cell's rated capacity so the user sees a familiar run-time unit rather than a raw SI value. Understanding this relationship helps you audit a BMS log, verify test equipment readings, and translate between academic papers using SI units and manufacturer datasheets using ampere-hours without second-guessing which frame of reference a document has adopted. The conversion happens thousands of times per second inside the BMS firmware, so a mismatch between the register scale and the display scale is one of the first things a firmware engineer checks when a state-of-charge report looks implausible.

A practical way to build confidence in this conversion is to run a known load through a cell while logging the raw coulomb register, then confirm that the displayed ampere-hour figure tracks it within the cell's tolerance band. When the two agree, you can trust the firmware's internal scaling and focus your attention on the parts of the system where real discrepancies tend to appear.

The 3600 factor and what it represents

The factor 3600 is not a measured value or a rounded constant; it follows directly from the definition of the hour and the definition of the ampere, so you can trust it without worrying that a different manufacturer might use a slightly different number. One ampere-hour is one ampere sustained for one hour, one hour is exactly 3600 seconds, and one ampere sustained for one second is one coulomb by definition, so multiplying gives one ampere-hour equals 3600 coulombs and dividing coulombs by 3600 converts to ampere-hours. Memorising that chain of definitions means you can reconstruct the conversion from first principles whenever you need to check a suspicious reading without reaching for a datasheet.

Why the factor is exact and what that means for your results

The factor is exact because it derives from the definition of the hour as 3600 seconds rather than from a measurement that could drift over time or vary between laboratories.³ A 3600-coulomb charge is exactly one ampere-hour regardless of how many decimal places you keep, and rounding only matters when the input itself is an approximation, as it is for real cell capacities that carry manufacturing tolerances of several percent. CapyToolkit applies the full-precision factor so that the only source of discrepancy in your result is the cell itself, and that transparency helps you distinguish between a genuine cell discrepancy and a rounding artefact that might otherwise trigger a needless investigation into a perfectly healthy battery.

BMS algorithms and the coulomb-to-ampere-hour bridge

Battery management systems juggle two unit systems at once, and the coulomb-to-ampere-hour conversion sits at the heart of their state-of-charge algorithms because the physics demands coulombs while the user interface demands ampere-hours and the BMS firmware must bridge both worlds without losing precision. Battery management chips count in coulombs internally because current integration in ampere-seconds is the natural output of a shunt-resistor measurement, and at each display update the chip divides its running coulomb count by 3600 to produce an ampere-hour figure that the user can compare against the cell's rated capacity. Designers who read BMS registers directly from debug ports see raw coulomb values and mentally apply the 3600 divisor to map them onto the cell's capacity label, so keeping that divisor consistent across the toolchain prevents a class of hard-to-trace state-of-charge discrepancies.

When two BMS systems from different vendors report different state-of-charge estimates for the same cell, the first debug step is checking whether both used the same capacity in ampere-hours as the denominator before concluding that one algorithm is genuinely more accurate. Converting that capacity to coulombs unifies the comparison in SI units, and it often reveals that the discrepancy is simply a mismatched capacity register rather than a genuine difference in cell behaviour, which saves hours of unnecessary debugging on a test bench that is actually performing exactly as designed.

Practical examples across battery chemistries

Converting different battery chemistries to coulombs puts them on a common scale, making it possible to compare charge storage without the distraction of voltage or cell size and giving a power electronics engineer a chemistry-neutral basis for choosing between lead-acid, lithium iron phosphate, and lithium polymer in a single design review. A 12 V 50 Ah lead-acid battery holds 180,000 coulombs⁴, a 48 V 200 Ah lithium iron phosphate rack holds 720,000 coulombs, and a 3.7 V 5000 mAh lithium polymer pouch holds 18,000 coulombs or 5 ampere-hours⁵, so expressing all three in coulombs allows direct comparison of stored charge without voltage or chemistry assumptions. That direct comparison makes it straightforward to compare cells across radically different form factors and application domains, because the coulomb count is the quantity that remains invariant regardless of whether the cell powers a low-current sensor node or a high-traction motor drive.

Why voltage does not change the coulomb count

Voltage affects energy in joules, not charge in coulombs, so a high-voltage pack and a low-voltage pack with the same ampere-hour rating carry the same coulombs but very different total energy, which is a distinction that matters every time a mixed-voltage system shares a charge budget from a common solar array. A power electronics engineer checking cells across different voltage platforms will therefore convert to coulombs first to confirm the charge budget is balanced before multiplying by voltage to verify the energy budget, and keeping those two steps in the correct order prevents a class of design errors that only surface when the system is already under load.

Charge versus energy: keeping the units straight

Mixing up charge and energy is one of the most common mistakes in battery specification, and it leads to confusing comparisons between cells and systems that can send a cross-disciplinary design team down a costly investigation of a discrepancy that was really just a unit confusion from the start. Coulombs and ampere-hours measure charge, not energy, and energy in joules equals charge in coulombs multiplied by voltage in volts, so a 100 ampere-hour battery at 12 volts stores 1.2 kilowatt-hours of energy but 360,000 coulombs of charge, and those two figures describe the same cell from perspectives that must not be conflated. The conversion between charge and energy always requires voltage, which is why you cannot convert between them without knowing the cell's nominal voltage, and keeping that requirement in mind prevents the kind of error that quietly corrupts a spreadsheet before anyone notices the units do not match.

This distinction matters when reading an EV spec sheet that quotes both the battery's kilowatt-hour energy rating and its ampere-hour capacity at a nominal voltage, because neither figure is wrong and they describe the same battery from energy and charge perspectives that serve different engineering audiences. Converting between coulombs and ampere-hours requires only the 3600 factor, while converting between charge and energy requires voltage as well, and keeping the two conversions distinct prevents errors in cross-disciplinary EV design reviews where a power engineer and a thermal engineer may be looking at the same cell from different unit conventions.

Staying consistent across design documents

When a design team spans multiple disciplines, unit conventions diverge and conversion errors creep into shared calculations because each role naturally gravitates toward the unit that makes its own daily work most legible, and without a written convention those small differences compound into costly mistakes that only surface when a prototype fails its first capacity test. Design teams that mix SI and application units frequently encounter factor-of-3600 errors at the boundaries between disciplines, where a power electronics engineer writing current requirements in amperes must hand off to a battery specifier writing capacity in ampere-hours and a software engineer working on BMS code tracking state in coulombs per sample interval, and each handoff multiplies the chance that the conversion factor gets lost.

Agreeing early on whether the system model uses coulombs or ampere-hours as the primary charge quantity, and keeping a visible note of the 3600 conversion at the top of every shared spreadsheet, prevents silent errors from propagating through a design and reaching the prototype stage where they are far more expensive to correct, and CapyToolkit provides that conversion at any time during design review so teams can spot-check suspicious values quickly without reaching for a calculator.

CapyToolkit provides the conversion at any time during design review, so teams can spot-check suspicious values quickly without reaching for a calculator or waiting for a firmware engineer to run a script, and that quick feedback loop is what catches unit inconsistencies before they propagate into a production test specification.

Try in the tool

Convert Microcoulomb to Coulomb

How to convert Microcoulomb to Coulomb

Divide the microcoulomb value by 1,000,000 to get coulombs, because the micro- prefix means one millionth.¹ Example: 500 µC ÷ 1,000,000 = 0.0005 C. To reverse it, multiply coulombs by 1,000,000.

Common Microcoulomb to Coulomb conversions

Microcoulombs in the circuit designer's toolkit

Most of the charge quantities that appear on a circuit board are tiny fractions of a coulomb, and the microcoulomb is the unit that keeps those numbers readable because it matches the natural scale of sensors, capacitors, and signal-chain components that deal with charges far below one coulomb in daily work.

Small charge packets in real circuits

The microcoulomb, at one millionth of a coulomb, fits the natural scale of many analogue circuits and keeps the numbers in a range that an engineer can compare without counting decimal places.² A 100 nanofarad bypass capacitor at a 5 volt supply holds 500 nanocoulombs, which is 0.5 microcoulombs, and a piezoelectric crystal in an accelerometer might generate 3 microcoulombs when subjected to a moderate shock, so understanding how microcoulombs connect to the SI unit of coulombs keeps your analysis consistent when you move from a component-level specification to a system-level energy calculation.

Where microcoulombs appear on a PCB

That consistency matters because a factor-of-1000 prefix error at the component level can propagate through a system-level energy calculation and produce a result that is off by three orders of magnitude before anyone notices the units do not match, and catching that class of error early is one of the main reasons engineers keep a conversion tool open during schematic review.

The Q = CV relationship and why it centres on microcoulombs

The Q = CV formula explains why the microcoulomb is the natural unit for capacitor charge at board level, because the numbers land in a readable range at typical component values where capacitances are in microfarads and voltages are in single digits. Charge, capacitance, and voltage relate through the formula Q = CV, where Q is in coulombs, C is in farads, and V is in volts, so a 1 µF capacitor at 3.3 V holds 3.3 microcoulombs and a 10 µF bulk decoupling capacitor at 5 V holds 50 microcoulombs. Those charge reserves are what supply fast transient currents to a microcontroller's output drivers before the power supply can respond, and expressing them in microcoulombs rather than coulombs keeps the numbers readable and avoids the six-decimal-place figures that would appear in the SI base unit throughout.³

Electrostatic and sensor applications

Sensors that convert physical phenomena into electrical charge naturally operate in the microcoulomb domain, because the signals are small but measurable and the microcoulomb keeps those signal magnitudes in a range that is practical to compare across different sensor technologies, and that cross-domain comparability is what makes the unit so useful for engineers working on mixed-signal boards.

Sensing, touch, and ESD scale

Piezoelectric sensors, touch controllers, and charge-coupled imaging devices all operate in the microcoulomb domain, and a piezoelectric force sensor bonded to a structural beam generates a charge proportional to strain that might span 0.1 to 500 microcoulombs depending on force and crystal area, so the designer working with these signals needs to convert between microcoulombs and coulombs when checking the signal against system-level specs written in SI base units.²

Charge-coupled device imagers accumulate photoelectrons in wells that fill to several hundred microcoulombs per pixel under full illumination, and touch-screen controllers detect a finger's proximity by measuring changes of a few tens of microcoulombs per electrode, so the microcoulomb is the natural unit for both sensing disciplines and converting to coulombs is only required when a system-level spec demands SI base units for cross-domain comparison.

Converting microcoulombs without making prefix errors

The conversion between microcoulombs and coulombs is a simple six-place decimal shift, but confusing it with the three-place milli- shift is a common and costly mistake that catches engineers who are moving quickly between component datasheets and system-level specifications. The conversion is a shift of six decimal places: 1 µC = 0.000001 C, or equivalently 1 C = 1,000,000 µC⁴, so when you see a figure like 47 µC and need it in coulombs the result is 0.000047 C or 4.7 × 10^-5 C, and the common mistake is shifting only three places and confusing the micro- (10^-6) prefix with the milli- (10^-3) prefix.

That single prefix slip is enough to misidentify a component's energy storage by three orders of magnitude, which would show up as an oversized or undersized decoupling network that fails transient performance requirements and forces a board respin before the root cause is traced back to a misplaced decimal point.

From microcoulombs to charge in context

The microcoulomb sits at a scale that is small by everyday standards but large by the standards of semiconductor protection, and that dual nature makes it worth understanding in context because the same unit appears in both ESD-sensitive circuit design and macroscopic static-discharge scenarios. The microcoulomb spans a wide range of real applications, but still represents a very small charge by macroscopic standards, and lightning bolts transfer one to five coulombs which is one to five million microcoulombs in one discharge,

so a human body charged with static electricity carries charges in the microcoulomb range and that is why ESD events can damage semiconductor junctions even though the spark feels minor. ESD protection standards such as the human body model specify charge in hundreds of nanocoulombs to a few microcoulombs, and understanding where the microcoulomb sits relative to everyday charge quantities helps calibrate the importance of charge-handling precautions from PCB layout to component handling to system-level grounding.

Moving between charge scales in calculations

A real electronic system contains charge quantities that span many orders of magnitude, and converting them all to coulombs is the only way to compare them in a single analysis that covers everything from the power supply to the sensor front end. Charge quantities in a real system often span many orders of magnitude in the same analysis, and a 100 ampere-hour battery contributes 360,000 coulombs⁵ to the power bus while a 100 µF filter capacitor at the rail holds about 0.00033 coulombs or 330 microcoulombs and a MEMS sensor tip capacitance of 1 pF at 1 V holds 10^-12 coulombs or 1 picocoulomb.

That range of values in a single design can stretch across twelve orders of magnitude, so working across these scales in a single spreadsheet requires consistent use of the SI unit and converting back to coulombs from microcoulombs, picocoulombs, and ampere-hours at the right moment. Converting at the right moment prevents the scale errors that hide in mixed-unit calculations and produce results that look plausible but are wrong by factors of a million or more, and CapyToolkit handles the microcoulomb-to-coulomb step so you can focus on the system analysis without worrying about prefix arithmetic.

Try in the tool

Convert Ampere to Milliampere

How to convert Ampere to Milliampere

Multiply the ampere value by 1000 to get milliamperes, since one ampere equals exactly 1000 milliamperes.¹ Example: 2.5 A × 1000 = 2500 mA. To reverse it, divide milliamperes by 1000.

Common Ampere to Milliampere conversions

Amperes and milliamperes across the current spectrum

Engineers move between amperes and milliamperes every day, because the two units cover different parts of the current range that no single prefix can handle conveniently, and fluency in both scales is what keeps a design review from getting stuck on a unit mismatch that could have been caught with a quick conversion.

The current scale engineers switch between

Current is the rate of charge flow, measured in amperes in the SI system, and one ampere means one coulomb of charge passing a point every second, so the milliampere at one thousandth of an ampere covers the current range occupied by most battery-powered electronics from wearable sensors drawing a few milliamperes to phone processors pulling hundreds.² Converting between the two is a daily routine in electronics, and a USB specification written in amperes must be compared against a device's charging current in milliamperes or a battery's discharge rate in milliamperes must be expressed in amperes to substitute into a power-loss formula that would otherwise produce a result off by a factor of 1000.

A quick sanity check during a design review is to confirm that every current figure in a shared document uses the same prefix before any calculation begins, because mixing amperes and milliamperes in one formula is the kind of slip that survives review and only appears when a prototype draws far more or far less current than expected. Keeping a single reference value handy, such as a known load current, lets you verify the prefix on the spot and move on with confidence.

Why the 1000 factor matters daily

The scale factor of exactly 1000 makes the arithmetic quick, but only if you apply it consistently across every document in the project, and CapyToolkit gives you that conversion in your browser so you can check values as you read through a specification without losing your place in the document or reaching for a calculator that might not be calibrated.

Reading power supply and charger specs in both units

Power adapters and charger specs use different current prefixes, and translating between them is the only way to spot a mismatch before it causes a problem that could damage a device or trip a protection circuit during product testing. Power adapters for laptops and appliances are rated in amperes, so a 65-watt 20-volt adapter delivers 3.25 amperes or 3250 milliamperes, while USB chargers are often rated in milliamperes and a 5-volt 2000-milliampere charger delivers 10 watts, so expressing both in the same unit is the only way to compare them directly.

When you connect a device rated for up to 3000 milliampere input to a charger rated at 2 amperes, expressing both in the same unit shows that 2 amperes is 2000 milliamperes and the charger is the limiting factor, which is the kind of comparison that is routine when planning charging infrastructure for a fleet of handheld devices or selecting a power bank for field use.

Current measurement in test and development

Test equipment usually picks the display prefix that fits the measurement range, but the underlying physics is the same and the conversion factor of 1000 links the two scales so a reading in one prefix can always be translated to the other without any loss of precision, and that consistency is what makes the conversion trustworthy across different instrument brands.

Test ranges and power budgets

Bench multimeters and oscilloscope current probes display current in whichever prefix fits the range, and a circuit drawing 35 milliamperes at rest and 420 milliamperes during activity is easier to read on the milliampere scale than as 0.035 and 0.420 amperes, while current-sense resistors in embedded designs have their voltage drop calculated in milliamperes times milliohms to give millivolts and keep all quantities in readable ranges.

From milliamperes to watts

When the same designer then writes the power consumption report in watts, they multiply milliamperes by volts and divide by 1000 to get watts, which requires the 1-ampere-equals-1000-milliamperes relationship, and keeping this scale factor fluent prevents arithmetic slips during firmware optimisation reviews that could otherwise ship a product with a power budget that is off by a factor of 1000.

Safety thresholds expressed in milliamperes

Safety standards use the milliampere scale because it aligns with the physiological thresholds that determine how current affects the human body, and those thresholds span a range where the difference between a harmless tingle and a fatal current is only a few orders of magnitude. Current thresholds that affect the human body are specified in milliamperes because that is the physiologically relevant scale, and one milliampere is roughly the threshold for tactile perception in most people while sustained contact with 10 to 20 milliamperes can cause involuntary muscle contraction that prevents releasing a live conductor.³

Approximately 50 milliamperes through a direct cardiac path can be fatal, which is why safety standards use these specific numbers to inform isolation requirements in medical devices, earthing standards in building wiring, and the design of residual current devices that trip at 30 milliamperes to protect against accidental shock. A designer working between a mains-voltage supply and a low-voltage circuit needs to express both the supply current in amperes and the hazardous-threshold current in milliamperes, with the factor of 1000 keeping the comparison clear and preventing a class of safety-critical errors that only surface during compliance testing.

Battery discharge rates in milliamperes and amperes

Battery testing and charger specification both rely on the ampere-to-milliampere conversion, because the C-rate notation and the actual current draw live on different scales and mixing them without converting is one of the most common mistakes in battery system design. Lithium-ion cells are often tested at a standard C/5 or C/10 discharge rate where C is the capacity in milliampere-hours, so a 2000 mAh cell discharged at C/5 delivers current of 400 milliamperes or 0.4 amperes while a 100 Ah lead-acid battery discharged at C/10 delivers 10 amperes or 10,000 milliamperes⁴, and both calculations use the same unit relationship with the prefix depending on the battery scale.

Fast-charge protocols for lithium cells specify charge current as a multiple of rated capacity, so a 1 C charge of a 3000 mAh cell requires 3000 milliamperes or 3 amperes⁵, and expressing this in both units simultaneously helps teams verify that the charger's ampere rating matches the protocol's milliampere requirement from the cell datasheet without manual arithmetic that could introduce a factor-of-1000 error. CapyToolkit converts amperes to milliamperes so you can compare a charger's ampere-rated output against a protocol's milliampere-rated requirement in seconds.

Try in the tool

Convert Milliampere to Ampere

How to convert Milliampere to Ampere

Divide the milliampere value by 1000 to get amperes, since one milliampere equals exactly one thousandth of an ampere.¹ Example: 250 mA ÷ 1000 = 0.25 A. To reverse it, multiply amperes by 1000.

Common Milliampere to Ampere conversions

When milliamperes enter ampere-based calculations

Circuit equations expect current in amperes, but datasheets and test equipment speak in milliamperes, so converting at the point of entry into a formula is the discipline that keeps the numbers honest and prevents the kind of factor-of-1000 error that silently corrupts a calculation before anyone notices the units do not match. Ohm's law, Watt's law, and most circuit equations are written in SI base units, so voltage in volts, current in amperes, resistance in ohms, and power in watts must all be in the same unit system before a formula can produce a valid result.²

Thermal calculations depend on it

Measurement equipment and device datasheets routinely express current in milliamperes because the numbers are more readable at the scale of modern electronics, and converting milliampere figures to amperes before entering them into formulas is the step that prevents factor-of-1000 errors from propagating through an analysis. A load drawing 350 milliamperes at 5 volts dissipates 350/1000 × 5 = 1.75 watts rather than 1750 watts, so getting this step right is especially important in thermal management calculations where wattage determines heat sink requirements.

The same discipline applies when you reverse the direction and convert an ampere-based result back into milliamperes for a datasheet comparison, because the audience for the number changes even when the physics does not. A quick habit of writing the chosen unit next to each current value in a notebook or schematic keeps the conversion explicit and removes the guesswork the next time someone reopens the file.

Fuse and protection device selection

Protection devices are catalogued in amperes, but the circuits they protect often specify current in milliamperes, so the conversion has to happen before the catalogue lookup and before a device is selected for a design that must pass safety certification. Protection devices are catalogued in amperes and standard fuse values run 0.5, 1, 2, 3.15 amperes and so on, so a circuit with a maximum current draw of 750 milliamperes needs a fuse above 0.75 amperes making 1 ampere the closest standard value.³

Standard fuse values and safety margins

A 30 percent safety margin on 750 milliamperes gives 975 milliamperes or 0.975 amperes, still covered by a 1 ampere fuse, and electronic circuit breakers and polyfuses follow similar logic where the hold current is specified in amperes so the milliampere figure from the load spec must be converted before checking the catalogue. Using 750 without converting and treating it as 750 amperes would lead to a catastrophically oversized device that offers no protection at the intended current, and CapyToolkit converts milliamperes to amperes so you can select the correct fuse rating without manual arithmetic.

Power consumption in battery-powered product development

Battery life models and product specifications use different units, and converting between them is what turns a current draw into a run-time estimate or a power budget that a product manager can compare against the device's target battery life, and that comparison is what drives decisions about battery size and firmware optimisation in every battery-powered product development cycle.

Battery life and watts

Firmware engineers optimising sleep current budgets work in microamperes and milliamperes, while battery life models aggregate current over time in milliampere-hours, and when the total power budget needs to be expressed in watts for the product specification the milliampere figures become amperes for the calculation. A system that spends 90 percent of the time in deep sleep at 5 milliamperes and 10 percent in active mode at 120 milliamperes has an average current of 0.9 × 5 + 0.1 × 120 = 16.5 milliamperes or 0.0165 amperes, and at 3.7 volts that is 0.061 watts, so expressing it in watts allows comparison with the solar panel's output power specification which is always in watts and closes the energy balance at the system level. CapyToolkit converts milliamperes to amperes so you can compute the power budget in watts directly without a separate conversion step.

Interpreting USB and charging standards

USB standards express current limits in both milliamperes and amperes depending on the version, and comparing a device against a charger requires putting both on the same scale so that a designer can verify compatibility before committing to a connector and cable specification. USB power standards span a wide current range, and USB 2.0's 500 milliampere limit is 0.5 amperes⁴ while USB Power Delivery at 20 volts and 5 amperes delivers 100 watts and the current there is 5000 milliamperes, so comparing a device's charging input spec against a charger's output rating requires both to be in the same unit.

A device rated for up to 3000 milliamperes of charging current will charge at full speed from a charger providing 3 amperes but only at reduced speed from one rated at 1.5 amperes or 1500 milliamperes, and the cable also matters because a standard USB-A cable is rated for 0.5 to 1 ampere while a full-specification USB-C cable handles 3 amperes or more. CapyToolkit converts milliamperes to amperes so you can compare device and charger ratings in the same unit without manual arithmetic.

Medical and industrial current thresholds

Safety standards for medical and industrial equipment specify current thresholds in milliamperes and microamperes, but the protective devices that enforce those thresholds are catalogued in amperes, so converting between the two is a routine step in any safety certification workflow. International safety standards for medical electrical equipment specify leakage current limits in microamperes and milliamperes, and IEC 60601-1 limits earth leakage to under 500 microamperes for class I equipment and under 100 microamperes for applied parts directly contacting patients, while industrial safety standards for residual current devices set trip thresholds at 30 milliamperes which is 0.03 amperes⁵ to protect workers from fatal shock.

Expressing these limits in amperes connects them to the circuit breaker and fuse tables used in installation planning, and keeping both the milliampere form for physiological relevance and the ampere form for component selection reduces confusion when engineers from electrical safety and power electronics backgrounds collaborate on a single design, and CapyToolkit converts milliamperes to amperes so you can verify that a protection device rated in amperes matches a hazard threshold expressed in milliamperes without manual arithmetic that could introduce a transcription error into a safety-critical specification.

Try in the tool

Convert Microampere to Milliampere

How to convert Microampere to Milliampere

Divide the microampere value by 1000 to get milliamperes, since one milliampere equals exactly 1000 microamperes.¹ Example: 5000 µA ÷ 1000 = 5 mA. To reverse it, multiply milliamperes by 1000.

Common Microampere to Milliampere conversions

Microamperes and the low-power design frontier

The microampere range is where battery life is won or lost, because the difference between 5 and 20 microamperes of sleep current can triple the run time of a wireless device, and that sensitivity to small current differences is what makes microampere-level optimisation so valuable for product designers working on wearables, asset trackers, and environmental monitors that must operate for years on a single cell.

Why sleep current matters

The microampere range defines the boundary between practical and impractical battery life for wireless and IoT devices, and a device consuming 100 microamperes continuously will run for about a year on a 1000 mAh cell while one consuming 1000 microamperes will last only a few months. Designers of wearable sensors, asset-tracking tags, and environmental monitors obsess over microampere-level consumption precisely because small differences in sleep current compound into large differences in product lifetime, and converting microamperes to milliamperes places those figures in the same unit as battery capacity ratings so the arithmetic of run-time estimation stays straightforward.² The conversion factor is exactly 1000, matching the standard SI step between consecutive prefixes, and that single shift of three decimal places is enough to expose whether a design is truly low-power or merely quiet on paper.

A useful check before locking a design is to estimate run time from the measured sleep current in microamperes and compare it against the marketing claim in milliampere-hours, because the two figures only agree when the conversion is applied consistently and no quiescent load has been overlooked. CapyToolkit performs that conversion in the browser so you can verify the claim on a single screen without exporting the numbers to a spreadsheet.

Sensor and photodiode signals in the microampere range

Sensors that convert physical phenomena into electrical current often produce signals in the microampere range, and converting those signals to milliamperes is the step that lets you compare them against the input ranges of front-end amplifiers and ADCs so you can verify that the signal chain has enough headroom before committing a design to production. The need for this conversion comes up whenever a sensor, amplifier, or ADC datasheet mixes prefixes.

Many physical sensors produce output currents in the microampere range, and photodiodes convert light intensity to current with responsivity in amps per watt where typical office illuminances produce currents from tens of nanoamperes to tens of microamperes, while current-output temperature sensors deliver microamperes proportional to temperature at around 1 µA per kelvin and electrochemical gas sensors generate microampere output currents proportional to gas concentration.

Verifying the sensor signal chain

In each case the sensor output must be converted to milliamperes for comparison against the input range of a front-end amplifier or the reference current of an ADC also specified in milliamperes, and the thousand-to-one step keeps the numbers manageable while also helping you spot an impossible sensor output before you spend time debugging the signal chain. Checking both ends of the conversion in the same unit prevents the off-by-three-orders-of-magnitude mistakes that happen when a nanoampere-level sensor is accidentally compared against a milliampere-range amplifier input, and CapyToolkit handles the scaling so you can focus on whether the signal chain has enough gain and headroom to resolve the measurement you are trying to make.

Leakage current and high-impedance circuit design

High-impedance circuits are sensitive to small leakage currents that would be negligible at lower impedance levels, and understanding how those currents interact with bias networks is essential for precision analogue design because a few microamperes of leakage can offset a precision measurement by hundreds of millivolts, enough to corrupt a sensor reading or push a carefully biased front end out of its linear operating region.

Bias and leakage budgets

Op-amp input bias currents range from picoamperes in FET-input devices to microamperes in bipolar designs, and a 100 nanoampere bias current into a source impedance of 100 kilohms produces 10 millivolts of offset whereas a 1 microampere bias into the same impedance produces 100 millivolts which can saturate a precision instrumentation amplifier. Comparators and ADC input stages have leakage currents specified in microamperes, and converting these to milliamperes allows direct comparison with the source current budget, while switch leakage in CMOS multiplexers can reach several microamperes and must be accounted for when the multiplexer connects to a charge-sensitive front end where each additional switch in the signal path adds its own leakage contribution.

Battery self-discharge in microamperes

Every battery loses capacity over time even when nothing is connected to it, and expressing that loss as an equivalent continuous current in microamperes makes it possible to compare against the quiescent draw of protection and monitoring circuits so a product designer can decide whether the protection circuitry or the cell itself is the dominant drain path.

Self-discharge is an internal current that drains a battery with no external load, and lithium primary cells lose roughly 1 percent of capacity per year which for a 1000 mAh cell is about 10 mAh per year or roughly 1.14 microamperes of continuous equivalent current, while rechargeable lithium-ion self-discharge is higher at around 2 to 5 percent per month under storage conditions.³ Expressing these rates in microamperes allows direct comparison with the quiescent current of a battery protection circuit, and if the protection IC consumes 3 microamperes while the cell self-discharges at 1.14 microamperes the IC is the dominant drain path, which helps decide whether a lower-quiescent IC is worth the extra cost for a product sitting on shelves for months before sale.

Test equipment ranges and measurement accuracy

Choosing the right measurement range on a bench instrument is the difference between a meaningful reading and a string of zeros, and understanding how range selection interacts with resolution is essential for accurate current measurement because the wrong range can hide a real current draw behind a resolution limit that rounds small signals to zero.

Current measurement accuracy depends on using a range that matches the signal, and a bench multimeter set to the 10-ampere range has a resolution of about 10 milliamperes⁴ which cannot distinguish between 50 microamperes and 60 microamperes because both round to zero at that resolution, so switching to the microampere range gives single-digit microampere resolution and reveals the actual current draw.

During low-power firmware development, engineers use a programmable power supply with microampere-resolution current sensing to measure deep sleep currents, capture wake events, and verify that peripherals power down correctly, and translating those microampere readings to milliamperes or amperes to feed into battery life models requires the factor of 1000 at each step⁵, which CapyToolkit handles so you can focus on the measurement strategy rather than unit bookkeeping.

Try in the tool

Convert Ampere to Microampere

How to convert Ampere to Microampere

Multiply the ampere value by 1,000,000 to get microamperes, since the micro- prefix means one millionth and there are one million microamperes in one ampere.¹ Example: 0.005 A × 1,000,000 = 5000 µA. To reverse it, divide microamperes by 1,000,000.

Common Ampere to Microampere conversions

The million-to-one scale across current measurement

An ampere is a large unit at the scale of individual transistors, and a microampere is a small unit at the scale of system power rails. The six-place gap between them is one of the widest in electronics, and bridging that gap correctly is essential whenever you are comparing a milliamp-level supply current with a microamp-level leakage spec or translating between a bench reading in amperes and a datasheet value in microamperes.

An ampere is a large unit relative to the currents that flow inside integrated circuits and through individual transistor channels, and modern processors operate at microampere-level leakage per cell with billions of transistors summing their leakage to ampere-level total supply current.² Converting between the two requires scaling by one million, which in practice means shifting a decimal point six places and understanding that factor prevents the numerical confusion that arises when a component leakage spec in microamperes is compared against a power supply ripple current spec in amperes without converting first.

Total quiescent current budget expressed in microamperes

A low-power design is the sum of many small standby currents, and expressing them all in microamperes is what makes the budget add up because the numbers stay readable and you can sum them directly without juggling prefixes. The total sleep current of a wearable, tracker, or environmental sensor is typically the sum of five or six individual contributions spread across the MCU, radio, and sensor subsystems.

Adding tiny currents

System designers building a low-power product list every component's standby current in microamperes: a main MCU at 2.5 µA in sleep, a real-time clock at 0.8 µA, a voltage regulator at 55 µA quiescent, a radio module at 1.2 µA in shutdown, and a sensor at 1.0 µA in standby. Summing gives 60.5 microamperes total, which is the figure you compare against the battery capacity to estimate how long the device will last in the field. Converting to amperes gives 0.0000605 A for comparison against the battery self-discharge rate expressed in fractions of an ampere.

A practical habit is to keep the per-component list in microamperes even after the total is known, because a future revision that swaps the radio or regulator will change one line and leave the rest of the budget intact. That per-component view also makes it easy to see which block dominates standby power and therefore where the next power-saving effort should go.

From microamperes to run-time estimates

On a 3000 mAh cell, 60.5 microamperes gives a theoretical sleep life of just over five and a half years, assuming self-discharge is negligible.³ Expressing the final figure in amperes ties it back to the battery's ampere-hour rating for the run-time formula, which is why the ampere-to-microampere conversion appears so often in low-power reviews and battery-life spreadsheets. Keeping the conversion fluent lets you switch between sleep-current totals in microamperes and battery capacity in milliampere-hour without stopping to count decimal places.

Leakage current specifications across process nodes

Semiconductor leakage scales with transistor count, and the gap between femtoamperes per device and amperes at the supply rail is what makes power gating necessary because even tiny per-transistor leakage accumulates into ampere-level supply currents that drain batteries and generate heat. As CMOS transistors shrink below 28 nanometre gate lengths, sub-threshold leakage grows because the gate cannot fully pinch off the channel, and a single 16-nanometre transistor might leak several femtoamperes while a chip with billions of transistors sums those femtoamperes into microamperes or even milliamperes of total leakage at the system level. Understanding that 1 ampere of total leakage current represents 10^6 microamperes⁴ from individual devices helps semiconductor engineers estimate how much of a processor's standby power is dominated by leakage versus by the reference currents and clock buffers that remain active, driving the decision to use power gating that disconnects entire logic blocks.

Instrument sensitivity and full-scale measurement range

Modern source-measure units cover a current range so wide that no single display prefix can resolve it, and switching between amperes and microamperes changes what the instrument can resolve at the cursor. Selecting the wrong range hides small signals behind a resolution limit or clips a large signal that the instrument could have measured on a more appropriate scale.

Sixteen orders of magnitude in one instrument

A source-measure unit used in semiconductor test can measure currents from 100 femtoamperes to several amperes, and the full-scale range spans more than 16 orders of magnitude so that a single instrument can characterise both the leakage of a single transistor and the supply current of a complete chip. Switching the unit of display from amperes to microamperes adds six orders of magnitude of resolution at the measurement cursor, revealing signals that were invisible on the coarser range.

Reading leakage in the unit that matches the scale

An engineer characterising a device's off-state leakage at 0.000000030 A reads the same value far more clearly as 30 nanoamperes, which is 0.03 microamperes. Recognising where in the microampere scale a given device leakage sits helps select the correct instrument range and avoid saturation on ranges set too low or poor resolution on ranges set too high. Converting to microamperes also makes it easier to compare readings across instruments from different manufacturers that may default to different display units.

Comparing device specs in current design work

Modern mixed-system designs draw current figures from multiple datasheets that each use a different prefix, and putting those figures on a common scale before comparing them prevents the unit mismatches that silently corrupt power budgets. The comparison happens every time you select a microcontroller, choose a power management IC, or verify that a peripheral driver can supply the current a sensor requires.

Mixed units in microcontroller and PMIC datasheets

Microcontroller datasheets list multiple current figures in different units: active supply in milliamperes, deep sleep in microamperes, and peripheral supply in microamperes. Power management IC datasheets quote quiescent current in microamperes and output current in amperes. Comparing the MCU's peripheral draw against the PMIC's quiescent floor requires converting both to the same unit, and doing so prevents the off-by-factor-of-1000 errors that happen when a register value written in microamperes is interpreted as milliamperes.

A quick percentage check using microamperes

Expressing the MCU's 3 milliampere active current as 3000 microamperes⁵ alongside the PMIC's 20 microampere quiescent shows that the PMIC overhead is under one percent of active draw, a negligible cost. That calculation only takes a few seconds, but only if you convert both figures to microamperes before comparing them. Keeping the ampere-to-microampere factor fluent speeds up these routine checks.

Try in the tool

Convert Volt to Millivolt

How to convert Volt to Millivolt

Multiply the volt value by 1000 to get millivolts, since the milli- prefix means one thousandth and one volt equals exactly 1000 millivolts. Example: 3.3 V × 1000 = 3300 mV. To reverse it, divide millivolts by 1000.

Common Volt to Millivolt conversions

Volts and millivolts in the signal chain

Every electronic circuit deals with voltages that span several orders of magnitude, and the volt-to-millivolt boundary is where precision measurement becomes possible. A sensor that outputs a few millivolts must be amplified to the volt range before a typical ADC can digitise it, and understanding that scale transition is the key to designing a signal chain with enough resolution and noise margin.¹

Voltage is the driving force behind current flow and the quantity measured most often in electronic circuits, with the volt sitting at the scale of power supplies, logic signals, and human-perceptible battery readings while the millivolt covers the output range of thermocouples, strain gauges, electrochemical cells, and precision reference voltages. In a typical instrumentation chain, the sensor produces millivolts, an amplifier scales those millivolts up to volts, an analogue-to-digital converter digitises the volt-range signal, and the result gets stored as a number that represents the original millivolt measurement, so understanding where each stage sits on the volt-to-millivolt scale is essential for calculating gain, setting offset, and choosing components with appropriate resolution.

Thermocouple and bridge sensor outputs

Sensors that measure temperature, force, or pressure often produce signals in the millivolt range, and understanding that output scale is the first step in designing the signal chain that follows. A few millivolts of sensor output must be amplified, filtered, and digitised without introducing offset or noise that swamps the measurement.

Sensor outputs in millivolts

Thermocouples are the classic millivolt-output sensor, and a type K thermocouple produces about 41 microvolts per degree Celsius, reaching roughly 4.1 millivolts at 100 degrees and 20.6 millivolts at 500 degrees.² Measuring the exhaust gas temperature of a combustion engine requires reading a few hundred millivolts from the thermocouple and converting that back to temperature via Seebeck coefficient tables, which is why the millivolt scale is the natural unit for this kind of measurement.

The same reasoning applies to other thermoelectric sensors, where the millivolt output scales linearly with the temperature difference across the junction and the conversion back to degrees depends on tables rather than a simple multiplier. Keeping the sensor output in millivolts during board bring-up lets you sanity-check the amplifier gain before any digital processing hides a scaling error.

Bridge sensors and instrumentation amplifiers

Wheatstone bridge sensors used in load cells and pressure transducers also produce millivolt outputs proportional to the stimulus. A full-bridge load cell with 2 millivolts per volt sensitivity, excited at 5 volts, produces a maximum output of 10 millivolts. Feeding that 10 millivolt signal into an instrumentation amplifier with a gain of 500 produces a 5 volt output for the ADC.

Battery voltage monitoring at millivolt resolution

Lithium-ion cell voltage is a fine-grained indicator of state of charge, and tracking it to millivolt resolution is what separates a long-lasting battery from one that ages prematurely. A battery management system that only resolves voltage to the nearest 10 millivolts cannot distinguish between a cell at 30 percent charge and one at 70 percent charge, which is why high-resolution ADCs are essential in modern BMS designs.

Lithium-ion cell voltage changes non-linearly with state of charge, and across the most useful capacity range of roughly 10 to 90 percent charge the cell voltage moves from about 3500 to 4100 millivolts at a typical 3.7 nominal voltage chemistry.³ A BMS with a 16-bit ADC and a 5 volt reference resolves about 76 microvolts per count, giving more than 3000 counts across a 240 millivolt critical region of the discharge curve, and expressing voltage thresholds in millivolts rather than volts gives the design review team four significant figures and avoids the rounding that collapses 3650 millivolts and 3700 millivolts into an indistinguishable 3.7 volts.⁴

ADC and DAC specifications at the millivolt level

ADC and DAC datasheets express resolution and error in millivolts because that is the unit that keeps the numbers proportional to the signals being measured. Converting between the ADC output code and the actual voltage at the input pins requires the reference voltage and the step size, both of which are typically given in millivolts.

LSB size in millivolts

Analogue-to-digital converters list key specifications in millivolts per least-significant bit, and a 12-bit ADC with a 3.3 volt reference has an LSB of 3300 ÷ 4096 = 0.806 millivolts, which is fine for many applications but insufficient when the signal being measured is only a few millivolts. Offset error might be specified as ±1 LSB, or ±0.806 millivolts, while total unadjusted error of ±5 millivolts on a 3300 millivolt range represents 0.15 percent accuracy, and keeping all of these specifications in the same unit prevents the conversion mistakes that happen when an engineer reads an LSB value in millivolts but writes the offset budget in volts. Understanding these figures helps you compare ADCs from different manufacturers on a common scale.

When to convert back to volts

All of these comparisons require working in millivolts to keep the numbers readable and proportional, and when the ADC datasheet gives figures in millivolts while the system requirement is in volts, converting back to volts at the end produces the accuracy statement in the units the product specification uses. CapyToolkit handles this conversion so you can work in whichever unit makes the comparison most natural.

PCB noise and millivolt signal integrity

Millivolt-level signals are easily contaminated by power supply ripple and layout-dependent noise, and keeping the noise budget below a tolerable fraction of the signal amplitude is one of the defining challenges of mixed-signal PCB design. A few millivolts of ground bounce or coupling from a nearby switching regulator can overwhelm a sensor signal that is only a few tens of millivolts in amplitude.

Noise budgets in millivolts

Power supply ripple on a 3.3 volt rail is typically specified in millivolts peak-to-peak, and a well-regulated supply might have 20 millivolts of ripple which is 0.6 percent of the rail voltage. That same 20 millivolts of noise superimposed on a 30 millivolt thermocouple signal represents a 67 percent contamination that makes the measurement useless without filtering or careful layout.⁵

Mixed-signal layout discipline

This contrast illustrates why the scale of millivolt signals demands careful attention to decoupling, layout, and signal routing that volt-level logic signals can largely ignore. Specifying noise budgets in millivolts for analogue signal paths and keeping them separate from the volt-level power and digital domains is standard practice in mixed-signal PCB design. CapyToolkit converts any voltage figure between millivolts and volts to support this work.

Try in the tool

Convert Millivolt to Volt

How to convert Millivolt to Volt

Divide the millivolt value by 1000 to get volts, since one millivolt is exactly one thousandth of a volt. Example: 4200 mV ÷ 1000 = 4.2 V. To reverse it, multiply volts by 1000.

Common Millivolt to Volt conversions

Millivolt-level signals reaching volt-level systems

Sensor outputs and system requirements speak different voltage languages, and converting between millivolts and volts is the translation step that keeps the design chain connected from the transducer all the way through to the display or control loop, so the two sides of the signal path can be compared without a unit mismatch hiding a design error.

From sensor output to system voltage

Instrumentation amplifiers, data acquisition cards, and system-level requirements are typically expressed in volts, while sensor outputs, reference electrode potentials, and battery cell voltages are described in millivolts for readability. Converting millivolts to volts is the step that joins these two vocabularies without changing the underlying quantity. A thermocouple output of 20.64 millivolts becomes 0.02064 volts, and that is the value you substitute into a Seebeck calculation or feed to a calibration polynomial. Getting this translation right matters because a misplaced decimal point at this stage propagates through every downstream calculation, turning a small unit slip into a large error by the time the signal reaches the controller.

Preserving precision across the conversion

Keeping four significant figures in the volt form requires expressing the millivolt figure with at least four digits before converting, so 20.64 mV rather than 20 mV, to avoid losing the 0.64 millivolt contribution that matters at high resolution. That small decimal place can be the difference between a useful calibration and a misleading reading, especially when the voltage feeds a control loop or a safety interlock where a few millivolts of error translate into a meaningful deviation from the intended setpoint.

Battery cell voltage management

Battery cell voltages are specified in millivolts because the useful capacity window of most chemistries spans only a few hundred millivolts, and the protection thresholds that keep a cell safe are accurate to tens of millivolts, making the finer unit the natural choice for any battery management design from a single-cell power bank to a multi-cell electric vehicle pack.

Cell thresholds

Lithium-ion cell chemistry defines tight voltage boundaries. A fully charged lithium cobalt oxide cell reaches 4200 millivolts; the protection cutoff during discharge is usually 2700 to 3000 millivolts. These thresholds in volts are 4.2 and 2.7 to 3.0 respectively. Battery management systems monitor cell voltage in millivolts because alarms or protection trips must be accurate to tens of millivolts, and a threshold that is off by even 50 millivolts can shorten cell life or create a safety hazard.

Connecting millivolt thresholds to power supply design

Converting these millivolt thresholds to volts connects them to the power supply design where a DC-DC converter's setpoint, the load's operating voltage range, and the battery's discharge curve are all expressed in volts. Aligning the protection thresholds with the converter's undervoltage lockout in the same unit prevents the supply from restarting into a deeply discharged cell, which is a common cause of field failures in battery-powered equipment.

Digital logic thresholds

Logic families define their input thresholds in volts, but verifying that a sensor output meets those thresholds is often easier in millivolts, where the numbers have more significant figures and the margin above or below the threshold is immediately visible. A standard 3.3-volt CMOS input recognises a low level below about 990 millivolts and a high level above about 2310 millivolts, leaving a forbidden region in between.¹ Expressed in volts these are 0.99 V and 2.31 V, but the millivolt form makes the noise margin arithmetic more transparent.

When checking whether a sensor with a 1200 millivolt output drives a 3.3-volt CMOS input reliably, you convert 1200 millivolts to 1.2 volts and compare it against the 0.99-volt low threshold; 1.2 volts is ambiguous and would require a level-shifting stage for reliable operation. Converting both the sensor output and the logic threshold to the same unit before comparing them is the step that catches marginal designs before they reach the bench.

Electrochemical cell potentials in millivolts

Electrochemistry tabulates electrode potentials in millivolts because the numbers land in a convenient range that avoids long strings of leading zeros, but the formal equations that use those potentials, such as the Nernst equation, expect all quantities expressed in volts, so the conversion from the tabulated millivolt figure to the volt value used in the equation is a step that cannot be skipped without introducing a factor-of-1000 error.

Tabulated potentials relative to the standard hydrogen electrode

Standard electrode potentials in electrochemistry are tabulated in millivolts relative to the standard hydrogen electrode. Zinc has a potential of -763 millivolts. Copper sits at +340 millivolts.² The standard calomel electrode is +241 millivolts.³ The zinc-copper galvanic cell drives 340 minus negative 763, which is 1103 millivolts, or 1.103 volts, and getting the sign and unit right in this subtraction is essential before any voltage is committed to a spec or a report.

Converting these tabulated millivolt potentials to volts is therefore a routine step for anyone calculating equilibrium potentials, corrosion driving forces, or electrodeposition windows. pH meters read a potential change of approximately 59 millivolts per pH unit at 25 degrees Celsius, which is 0.059 volts per pH unit entering the logarithmic pH equation.

Audio and RF signal levels

Audio and RF engineers each prefer a different voltage prefix for signal levels, and converting between them is what keeps signal chains matched across domain boundaries without introducing a 60 dB error from a missed milli- prefix. Audio equipment specifies signal levels in decibels relative to a millivolt reference (dBmV) or a volt reference (dBV), and converting between the two involves the same 1000-to-1 ratio. A signal at 1228 millivolts, the nominal balanced line level at +4 dBu, is 1.228 volts⁴.

RF system engineers express carrier levels in millivolts at a specific impedance; a received signal of 50 millivolts into 50 ohms represents a power level that can be compared against a sensitivity specification in volts at the antenna terminal. Understanding both the millivolt and volt representations of these signal levels prevents level errors when connecting equipment from audio and RF domains that each use their own preferred unit convention, and it is one of those conversions that is easy to get wrong under deadline pressure.

Offset voltages in operational amplifiers

Op-amp offset voltages are specified in millivolts or microvolts because that is the scale where the offset becomes a meaningful fraction of the signal being amplified, and the datasheet uses that finer unit to keep the figure readable. Operational amplifiers have input offset voltages specified in millivolts or microvolts. A precision op-amp might have a 0.1 millivolt offset, while a general-purpose device can have 5 millivolts. Expressed in volts, those are 0.0001 V and 0.005 V⁵.

These tiny offsets matter enormously when amplifying millivolt signals because even a 1 millivolt offset is a 10 percent error on a 10 millivolt input. Converting the offset specification to volts and comparing it against the signal voltage in volts gives an immediate sense of whether an offset-trimming circuit or a higher-grade amplifier is needed, which is a judgement that every analog front-end designer makes early in the component selection process. CapyToolkit converts millivolts to volts for this kind of early component selection check, so the comparison happens in the same unit before a schematic is committed.

Try in the tool

Convert Kilovolt to Volt

How to convert Kilovolt to Volt

Multiply the kilovolt value by 1000 to get volts, since the kilo- prefix means one thousand. Example: 11 kV × 1000 = 11,000 V. To reverse it, divide volts by 1000.

Common Kilovolt to Volt conversions

Kilovolts in power engineering and beyond

The kilovolt is the natural unit for any system where the operating voltage is large enough that writing it in volts would produce unwieldy six-figure numbers, so engineers reach for the kilo- prefix to keep drawings, calculations, and specifications readable and to reduce the chance of a misplaced decimal point in a specification or a purchase order.

Why power systems use kilovolts

The kilovolt is the voltage unit of choice in power engineering because the voltages encountered in transmission, distribution, and high-voltage equipment are unwieldy in volts. A 33,000-volt distribution network is more naturally called a 33-kilovolt network in engineering documents, nameplate ratings, and regulatory filings. The kilo- prefix represents exactly one thousand, so the conversion to volts is always exact.¹

Where kilovolts reduce the digit count

Beyond power engineering, kilovolts appear in X-ray equipment, mass spectrometry, particle physics, and high-voltage electronics used in medical and industrial processes. Wherever the operating voltage exceeds a few thousand volts, the kilovolt scale reduces the number of digits to a manageable size and lessens the chance of misreading a zero. That readability is not cosmetic; it reduces commissioning and procurement mistakes.

Power transmission and distribution voltage classes

Power networks are organised into voltage classes that step the voltage down from transmission levels to the service levels that reach homes and factories, and keeping each class expressed in the unit that suits its scale is what prevents a tenfold error from a missed prefix when a design moves between stages.

Transmission, distribution, and service levels

Electricity travels from generating stations to consumers through a cascade of voltage classes, each suited to a different stage of the network. Bulk transmission uses 132, 275, or 400 kilovolts in most European networks, and 115, 230, 345, 500, or 765 kilovolts in North America, because higher voltage lowers current and reduces resistive line losses for the same power level.² Primary distribution uses 11 or 33 kilovolts, and secondary distribution steps down to 400 volts for three-phase industrial supplies and 230 volts for household consumption, so the engineer who works across these boundaries converts fluently between kilovolts and volts at every stage.

Converting at the boundaries

Expressing all stages in kilovolts or in volts at appropriate points in a design calculation and then converting at the boundaries is standard practice in protection and relay engineering, because the conversion factor stays fixed even as the engineering purpose changes from load flow studies to fault analysis to protection coordination. CapyToolkit converts kilovolts to volts so you can verify that a component rated in volts is suitable for a system voltage expressed in kilovolts, which is a check that belongs in every design review.

High-voltage equipment ratings and insulation

Equipment ratings and insulation requirements are expressed in kilovolts because that is the scale at which clearance distances and creepage become design-critical, and a mistake at this scale is rarely a minor one, which is why the standards community has settled on the kilovolt as the default unit for anything above the low-voltage distribution threshold.

Component stress checks

Every piece of equipment connected to a power network carries a voltage rating in kilovolts, such as a 36 kV switchgear cubicle or a 66 kV power transformer, and these ratings inform the clearance distances, insulation levels, and creepage distances required by standards such as IEC 60071, so the designer who treats the kilovolt rating as a formality rather than a hard limit is the one who ends up with a field failure. Designing equipment for a 33 kilovolt system requires converting between the system voltage of 33 kV and the peak voltage of 33 × √2 = 46.7 kV for insulation stress analysis, and then to volts when checking component datasheets that express maximum voltage in volts, so the designer can confirm that every capacitor, breaker, and bushing in the assembly is rated for the peak it will actually experience rather than just the nominal line-to-line value.

Keeping the kilo-to-base conversion fluent prevents applying a component rated at 2000 V to a peak voltage of 46,700 V, because a 2000 V capacitor on a 33 kV system would fail almost immediately and the failure mode is often violent rather than graceful, which is exactly the kind of mistake that CapyToolkit helps you avoid by converting kilovolts to volts so you can compare the system peak voltage against the component rating in the same unit before the prototype is built.

Medical and industrial high-voltage applications

Medical imaging and industrial processes both rely on kilovolt-range voltages, but the components that deliver those voltages are rated in volts, so the system designer converts between the two at every point where a component is selected or a rating is verified, and this is one of those conversions where getting it wrong has consequences that show up in the failure analysis rather than in the spreadsheet.

X-ray tubes for diagnostic imaging operate at 50 to 150 kilovolts across the anode-cathode gap, with the peak voltage determining the maximum X-ray photon energy and the penetration depth through tissue.³ CT scanner tubes reach 140 kilovolts in routine use, and industrial X-ray inspection systems for weld testing and composite structures can reach 450 kilovolts. Electrostatic precipitators for removing particulate from industrial exhaust use 40 to 70 kilovolts across the collection plates. In each application, the operating voltage expressed in kilovolts must be converted to volts when checking the ratings of individual high-voltage diodes, capacitors, and switching transistors, since component datasheets almost always specify maximum voltage in volts, and a factor-of-1000 slip at this stage is the difference between a working supply and a destroyed prototype.

High-voltage probe and measurement accuracy

High-voltage probes and safety standards both depend on the kilovolt-to-volt conversion, because the probe rating and the safety limit must be compared in the same unit before a measurement is made, and a mismatch here is the kind of error that damages equipment or injures people, which is why every high-voltage lab has a written procedure for confirming units before a test begins.

That is why the conversion deserves the same care as any other safety-critical calculation in the lab, and why oscilloscope probes for high-voltage measurements are specified by their voltage rating in kilovolts, with a 40:1 probe rated at 1.4 kilovolts peak dividing the input signal by 40 so the oscilloscope sees a safe millivolt- to volt-range signal.

Selecting the right probe requires converting the expected waveform peak from kilovolts to volts for the component stress check, while also checking the probe's bandwidth in megahertz to ensure accurate capture of fast switching transients, because a probe that is rated correctly but too slow will misrepresent the peak and lead to a dangerous underestimate of the stress on the device under test.

Safety standards for high-voltage test equipment specify working voltage limits in volts, so the kilovolt system voltage translates to volts in the safety documentation, and keeping the two figures in the same unit is what makes the compliance check meaningful. CapyToolkit handles the conversion to the required decimal precision, so the safety limit and the measured value can be compared directly without a manual recalculation that introduces its own risk of error.

Try in the tool

Convert Volt to Kilovolt

How to convert Volt to Kilovolt

Divide the volt value by 1000 to get kilovolts, since one kilovolt equals exactly 1000 volts. Example: 11000 V ÷ 1000 = 11 kV. To reverse it, multiply kilovolts by 1000.¹

Common Volt to Kilovolt conversions

Moving from volts to kilovolts in system documentation

System documentation for medium- and high-voltage projects uses kilovolts because it keeps the numbers compact and the relative magnitudes of different voltage levels visible at a glance, which is why every volt measurement that enters a project record eventually passes through a conversion step before it reaches a drawing or a specification.

System documents in kilovolts

Engineers who design or maintain medium- and high-voltage systems spend most of their working time in kilovolts, but the equipment that connects to those systems has component-level voltage ratings expressed in volts. Translating a measured voltage of 11,000 volts into the 11 kV figure used throughout project documentation is a small step that keeps drawings, calculations, and specifications consistent across every discipline contributing to the project.

Reducing transcription mistakes in team documents

Mismatched units between a measurement log and a design document are a well-known source of errors in commissioning, so establishing the habit of converting to kilovolts at the appropriate scale reduces transcription mistakes in team documents and prevents a field reading in volts from being mistaken for a kilovolt value on a single-line diagram, which is the kind of error that only surfaces during a live test.

Per-unit calculations and voltage bases

Per-unit analysis is the standard tool for power system studies, and it depends on expressing all voltages relative to a chosen base in kilovolts so that quantities on different sides of a transformer become directly comparable without additional scaling factors, which is why the conversion happens early in any study workflow.²

Base voltage normalisation

Power system analysis uses per-unit normalisation, where all voltages are expressed as multiples of a chosen base voltage expressed in kilovolts. A 132 kV system with a 11 kV transformer secondary uses base voltages of 132 kV and 11 kV on the respective sides. A measured voltage of 11,500 volts on the secondary side converts to 11.5 kilovolts, and dividing by the 11 kV base gives a per-unit voltage of 1.045, which immediately reveals how far the measurement deviates from the expected nominal value.

Per-unit calculations connect impedances, power flows, and fault currents across transformer boundaries and simplify the algebra considerably. Every volt-to-kilovolt conversion in this process is a factor of 0.001, applied consistently so that the base voltage in kilovolts matches the per-unit model and the resulting per-unit impedance is the same whether referred to the high-voltage or the low-voltage side.

Relay and metering settings

Protection relays and metering instruments measure voltage at a safe level, but the settings that matter are expressed at the system voltage in kilovolts, so every relay coordination study depends on converting between the two scales accurately before any threshold is committed to the device, and getting that conversion wrong can delay a trip or cause a nuisance operation.

Protection relays in a substation monitor voltage via transformers that step down the high line voltage to 100 or 110 volts for the relay's measuring input.³ A relay protecting a 33 kV feeder uses a 33,000/110 voltage transformer ratio, so 110 volts at the relay corresponds to 33,000 volts (33 kV) on the line. Setting the relay's overvoltage pickup at 115 volts corresponds to 115 × (33,000/110) = 34,500 volts on the line, which is 34.5 kilovolts when expressed in the same unit as the system voltage.

Expressing all thresholds in kilovolts in the relay settings record keeps them directly comparable to the system voltage levels on the single-line diagram, and it removes the ambiguity that arises when a setting sheet mixes volts and kilovolts across adjacent rows, which is a common source of misconfiguration during commissioning.

Appliance and motor nameplate voltages

Motor nameplates list voltage in volts, but comparing motors and drives is easier when both are expressed in kilovolts, because the prefix makes the relative scale visible across a catalog that spans fractional-kilovolt and multi-kilovolt machines from many manufacturers, and it reveals at a glance which machines belong to the same voltage class.

Industrial motors carry nameplate voltages of 400, 690, 3300, or 6600 volts depending on their power class. Converting to kilovolts gives 0.4, 0.69, 3.3, and 6.6 kV.⁴ The 3.3 and 6.6 kV motors are called medium-voltage motors and use drive systems designed for kilovolt-class voltages, so expressing their ratings in kilovolts aligns them with the distribution voltage that feeds them.

A motor nameplate reading 3300 V corresponds to 3.3 kV, and a medium-voltage drive for that motor is rated at 3.3 kV. Comparing the motor's nameplate voltage in kilovolts against the drive's output rating in kilovolts, after converting both from volts, eliminates an ambiguity that would arise if one were left in volts and the other in kilovolts during equipment matching, and it keeps the specification review straightforward.

High-voltage laboratory and test equipment contexts

High-voltage test equipment is planned in kilovolts but built from components rated in volts, and the conversion between the two is what keeps the test safe and the results valid across every stage of the impulse circuit, from charging to discharge, so the test engineer works in both units throughout a single test campaign.

Impulse test generators apply peak voltages from tens to hundreds of kilovolts to insulator and surge arrester specimens to verify withstand capability. The test voltage is set in kilovolts on the generator control, but the individual capacitors and spark gaps in the Marx generator circuit are rated in volts, so the designer must translate between the two scales before committing a component to the circuit.

A stage capacitor rated at 100,000 volts needs to match the stage's charging voltage in the same unit, so the designer converts freely between the 100 kV system planning figure and the 100,000 V component rating.⁵ CapyToolkit provides that conversion quickly, supporting both design and the verification step of confirming that all component ratings exceed the peak voltages they will experience during test, which is the final safety check before energising the generator.

Comparing across voltage levels in a project

Multi-voltage projects benefit from documenting every voltage level in the same unit, and kilovolts are the natural choice because they make the relative magnitudes visible across a design that spans from transmission down to low-voltage control circuitry, which is exactly the range where unit confusion causes the most expensive mistakes.

Many electrical projects span multiple voltage levels: a 33 kV incoming supply, a 415 volt distribution board, and 24 volt control circuits.⁶ Documenting all three in kilovolts gives 33, 0.415, and 0.024 kV, which makes their relative magnitudes immediately apparent and simplifies checking that transformer ratios, cable ratings, and protection settings are consistent throughout the design.

The alternative, expressing all three in volts as 33,000, 415, and 24, works arithmetically but makes the magnitudes harder to compare at a glance. Choosing kilovolts for the system-level view and converting individual component volt ratings to kilovolts at the point of comparison is a small discipline that prevents unit confusion from compounding across a multi-voltage project, especially when the design passes between teams that each prefer a different unit.

Try in the tool

Convert Microvolt to Volt

How to convert Microvolt to Volt

Divide the microvolt value by 1,000,000 to get volts, since one microvolt is one millionth of a volt. Example: 500 µV ÷ 1,000,000 = 0.0005 V. To reverse it, multiply volts by 1,000,000.¹

Common Microvolt to Volt conversions

Microvolts in precision measurement and biomedical instrumentation

At the lower end of the practically measurable voltage range, the microvolt is the unit that keeps precision signals readable and comparable across instrument types, because the alternative is expressing every measurement in volts with four to six leading zeros after the decimal point, and those extra zeros are the source of transcription errors when a technician miscounts the decimal places on a long test record.

Very small voltages

The microvolt sits at the lower end of the voltage range that electronic instruments can usefully measure with conventional components, and it is the unit that biomedical and precision instrumentation engineers reach for whenever a signal is too small to express cleanly in volts, because writing 0.000020 V on a test record is slower and more error-prone than writing 20 µV, and the difference matters when a technician is scanning a column of readings at the end of a long shift.

Brainwave signals recorded from scalp electrodes reach 20 to 100 microvolts.² The electrical activity of a single cardiac muscle cell produces a potential of only a few microvolts at a surface electrode, and precision laboratory references vary by tens of microvolts across their operating temperature range, which means even a 10 microvolt error on a 5 volt reference represents a meaningful fraction of the allowed tolerance in a precision measurement system and cannot be safely ignored during calibration.

Why microvolts keep the numbers readable

In each case, expressing the signal in volts would require four to six leading zeros after the decimal point, making both reading and comparison prone to error because it is easy to miscount the decimal places when scanning a column of readings. The microvolt scale brings these quantities back to convenient numbers and makes their practical magnitude visible at a glance, which is why biomedical and industrial instrumentation datasheets consistently quote sensitivity in microvolts rather than volts.

Op-amp noise and the microvolt noise floor

Integrating amplifier noise density over the signal bandwidth reveals whether the front-end design can resolve microvolt-level signals without drowning them in internal noise, and the result of that integration determines the smallest signal the amplifier chain can faithfully reproduce, which is why every precision front-end design begins with a noise budget that accounts for the full bandwidth of interest.

Noise budgeting

Operational amplifiers for precision signal conditioning specify voltage noise in nanovolts per square root of hertz.³ Integrating that noise density over the signal bandwidth gives a total noise voltage in microvolts RMS. A front-end amplifier with 5 nanovolts per root-hertz driving a 100 hertz signal bandwidth contributes 5 × √100 = 50 nanovolts of noise, which is 0.05 microvolts. That falls well below the 20 microvolt minimum EEG signal, giving adequate signal-to-noise ratio for clinical recording without additional averaging or filtering.

When amplifier noise limits resolution

A less quiet amplifier at 50 nanovolts per root-hertz contributes 500 nanovolts, or 0.5 microvolts, which still allows a reasonable EEG but begins to limit resolution for very low-amplitude signals such as the P-wave in a resting ECG. Converting nanovolts to microvolts to volts as context demands keeps these comparisons accurate and readable, because each step in the conversion corresponds to a factor of 1000 that is easy to track when the units stay consistent throughout the signal chain analysis.

Thermocouple signals at the microvolt scale

Because the Seebeck coefficient of a thermocouple pair is so small, the output signal at the cold end of the measurement range can be only a few microvolts, demanding careful front-end design that accounts for both the amplifier offset voltage and the thermal layout of the reference junction, because any parasitic EMF from dissimilar metals at a solder joint can easily swamp the signal of interest.

The Seebeck coefficient of a thermocouple pair defines how many microvolts it produces per degree Celsius of junction temperature difference.⁴ A type B thermocouple produces roughly 10 microvolts per degree near its operating midpoint, while a type E pair produces 58 microvolts per degree, among the highest sensitivity of common types. At the cold end of the measurement range, where the temperature difference is small, the output might be only a few microvolts, and measuring 10 microvolts accurately requires an instrumentation amplifier with a few hundred nanovolts of offset voltage, careful thermal management of the reference junction, and a circuit board designed to avoid thermoelectric EMF from dissimilar metals at solder joints.

Common-mode rejection and the microvolt signal

When a microvolt-level sensor signal shares a PCB with mains-voltage conductors and switching supplies, the interference ratio can exceed 120 dB, making common-mode rejection the deciding factor in measurement quality because even a small fraction of the interfering voltage leaking through to the output can swamp the signal of interest.

Biomedical and industrial sensors that generate microvolt signals share their environment with mains power lines operating at hundreds of volts and switching power supplies generating hundreds of millivolts of conducted noise. The ratio between the microvolt signal and the millivolt-to-volt interference can exceed 120 dB, which means the front-end amplifier must reject the interfering voltage by a factor of at least one million to keep the output clean enough for accurate measurement.

Instrumentation amplifiers and isolation amplifiers are specified by their common-mode rejection ratio, which defines how much of the interfering voltage appears at the output relative to the differential signal.³ A 120 dB CMRR means one volt of common-mode interference appears as only one microvolt at the amplifier output, matching the scale of the desired signal and making it possible to resolve EEG and thermocouple waveforms without additional hardware filtering in many practical scenarios.

Precision voltage references and long-term stability

Voltage references used in high-accuracy data converters specify long-term drift in microvolts, and over multi-year calibration intervals that drift can accumulate to tens of LSBs, which is why every precision measurement laboratory maintains a documented calibration schedule tied to the expected drift rate of its reference standards, because failing to recalibrate on time is the most common source of silent accuracy loss in a production test system.

Voltage references used in high-accuracy ADCs and DACs specify their long-term drift in microvolts per month or microvolts per thousand hours of operation.⁵ A reference rated at 5 volts with a long-term stability of 10 microvolts per 1000 hours changes by only 10/5,000,000 = 2 parts per million per 1000 hours, which appears negligible until the interval stretches across years of continuous operation.

Over a 10-year calibration interval of roughly 87,600 hours, that compounds to a potential drift of 876 microvolts, or 0.000876 volts. For a 16-bit ADC with an LSB of about 76 microvolts, a drift of 876 microvolts represents more than 11 LSBs, which would require recalibration to maintain measurement integrity and avoid silent accuracy loss in a data acquisition system that has not been checked against its reference standard.

Spectrum analyser sensitivity and receiver thresholds

At the sensitivity limit of a spectrum analyser, the noise floor translates to fractions of a microvolt across a 50 ohm impedance, and receiver designers must convert between these microvolt references and volt-level ADC full-scale figures whenever they validate the noise budget of a high-frequency receiver chain, because a noise figure calculation that mixes microvolt and volt references without conversion is off by a factor of a million.

A good spectrum analyser can detect signals as small as -174 dBm per hertz at room temperature, equivalent to about 0.9 nanovolts into 50 ohms over a 1 hertz bandwidth.⁶ For a 1 MHz bandwidth measurement that becomes roughly 0.9 microvolts, which is comparable to the noise floor of a well-designed low-noise amplifier at the same bandwidth.

RF receiver sensitivity specifications are often quoted in microvolts per metre for antenna field strength, or in microvolts EMF at the antenna terminal. Converting these microvolt reference levels to volts for comparison against ADC full-scale specifications, or converting a volt-level full-scale back to microvolts for a noise figure calculation, is part of the routine signal chain budget analysis that every receiver designer carries out. CapyToolkit converts between the two units at any precision, so the designer can move between the microvolt-scale noise floor and the volt-scale full-scale without a manual recalculation that risks a decimal-place error.

Try in the tool

Convert Ohm to Kilohm

How to convert Ohm to Kilohm

Divide the ohm value by 1000 to get kilohms, since one kilohm equals exactly 1000 ohms. Example: 4700 Ω ÷ 1000 = 4.7 kΩ. To reverse it, multiply kilohms by 1000.¹

Common Ohm to Kilohm conversions

Resistor values and the kilohm scale

Across the enormous range of manufactured resistor values, the kilohm occupies the middle ground that general-purpose electronics encounters most often, from pull-up networks and voltage dividers to biasing networks and sensor interfaces. Component values below about 1000 ohms are usually written in ohms, while values from 1000 to 999,000 ohms are expressed in kilohms.

Common resistor notation

Resistors are manufactured across an enormous value range, from a fraction of an ohm for current-sensing shunts to hundreds of megaohms for leakage tests. The kilohm occupies the middle ground most frequently encountered in general electronics: pull-up resistors for I2C buses are typically 4.7 kΩ; voltage dividers for ADC inputs use 10 kΩ pairs; biasing networks for transistors and op-amps often sit in the 1 kΩ to 100 kΩ range.

Why kilohms keep schematics readable

Expressing these values in ohms would mean writing 4700, 10000, and 22000 on every schematic label, adding digits that slow reading and increase transcription errors. The kilohm keeps the labelling compact and the mental arithmetic quick. It also makes the difference between a 1 kΩ and 10 kΩ network visible at a glance, which matters when you are scanning a dense board for the feedback resistor that sets an amplifier's gain or the pull-up that determines a bus idle state.

RC time constants with kilohms

Combining a kilohm-range resistor with a microfarad capacitor produces a time constant directly in milliseconds, which is why this unit pairing dominates audio-frequency filter design and makes the numbers easy to read on a schematic without a calculator. The convenience is not just about saving keystrokes; it keeps the relationship between component values and the resulting timing visible at every stage of the design.

Filter timing

The RC time constant formula τ = R × C connects resistance in ohms and capacitance in farads to produce a time in seconds. When the resistor is measured in kilohms and the capacitor in microfarads, the time constant falls in milliseconds because the 10^3 and 10^-6 factors multiply to give 10^-3 seconds. A 10 kΩ resistor with a 100 µF capacitor has a time constant of 1000 milliseconds, or 1 second, without converting either component to SI base units first.²

This numerical convenience is one reason kilohms and microfarads are the preferred units for analogue filter design at audio frequencies, where time constants in the millisecond to second range correspond to filter cutoffs in the hertz to kilohertz range. CapyToolkit converts between ohms and kilohms so you can verify that the RC value you calculated matches the actual component values on your board.

Voltage dividers and impedance in circuit design

When a voltage divider built from kilohm-range resistors feeds an ADC or a high-impedance input, the loading error stays small, but mixing ohm and kilohm values without converting can produce matching errors of three orders of magnitude that silently corrupt the measurement. The mismatch is especially dangerous when a single design contains both a 50 Ω RF front end and a 10 kΩ bias network, because the numbers look plausible on paper until you convert them to a common unit.

A voltage divider using two equal 10 kΩ resistors from a 3.3 volt supply produces a 1.65 volt midpoint. The current through the divider is 3.3 ÷ 20,000 = 165 microamperes. Expressing the resistance in kilohms makes it easy to check the loading effect on the signal source: a source with an output impedance of 200 Ω driving into a 10 kΩ divider experiences less than 2 percent loading, which is acceptable. Impedance matching in RF circuits uses 50 Ω and 75 Ω standards, while audio line inputs are 10 kΩ or 47 kΩ. Comparing these figures requires knowing whether a value is in ohms or kilohms; converting at the right point prevents using a series matching resistor that is 1000 times too large.³

Pull-up and pull-down resistor selection

Selecting the right pull-up resistance for a digital bus involves a trade-off between rise time and static current draw, and expressing the value in kilohms keeps the power budget arithmetic transparent when you are comparing several candidate values side by side. The numbers stay in a readable range even as the design moves from a single pull-up on a test board to a full 16-line bus on a production unit.

I2C pull-up values in kilohms

Digital logic buses such as I2C and SPI use pull-up resistors to hold lines high when no driver is asserting a low level. I2C pull-ups are typically 4.7 kΩ for standard-mode (100 kHz) and 2.2 kΩ for fast-mode (400 kHz) operation. Lower resistance makes lines rise faster, supporting higher bus speeds, but increases current consumption.⁴

At 3.3 volts, a 4.7 kΩ pull-up draws about 700 microamperes per line when asserted low. In a 16-line design that is 11.2 milliamperes of static pull-up current, which matters on a battery-powered device. Expressing the pull-up resistance in kilohms and the resulting current in milliamperes keeps both numbers in readable ranges for power budget calculations. CapyToolkit converts between ohms and kilohms so you can verify the power budget impact of different pull-up values during the design phase.

Resistance measurement and precision

Because LCR meters auto-range across ohms, kilohms, and megaohms, converting a measured value to the same unit as the schematic is the step that catches out-of-tolerance parts before they reach the board and prevents a faulty batch from being soldered into a product. The conversion is straightforward, but skipping it is how a 100 Ω part ends up substituted for a 10 kΩ design value without anyone noticing until the first prototype fails its functional test.

Ohm meters and LCR meters display resistance in whatever prefix fits the range: ohms, kilohms, or megaohms. A resistor labelled 10 kΩ with a 1 percent tolerance may measure anywhere from 9.9 kΩ to 10.1 kΩ, which is 9900 Ω to 10,100 Ω. For a circuit where the voltage divider output must be within 0.5 percent of the nominal voltage, 1 percent resistors may not be accurate enough without individual selection or trimming.⁵

Precision resistors with 0.1 percent or better tolerances are available in standard kilohm values and cost more.⁶ CapyToolkit converts between ohms and kilohms so you can cross-check a measured resistance against a schematic value given in the other unit without additional arithmetic. A 4.7 kΩ resistor with 1 percent tolerance might measure 4.65 kΩ or 4.75 kΩ; converting both to ohms (4650 Ω and 4750 Ω) lets you compare against the nominal 4700 Ω directly.

Try in the tool

Convert Kilohm to Ohm

How to convert Kilohm to Ohm

Multiply the kilohm value by 1000 to get ohms, since one kilohm equals exactly 1000 ohms. Example: 4.7 kΩ × 1000 = 4700 Ω. To reverse it, divide ohms by 1000.¹

Common Kilohm to Ohm conversions

When kilohms must become ohms

Circuit laws in their SI form expect resistance in ohms, so converting kilohms to amperes at the point of entry into a formula is the discipline that prevents factor-of-1000 errors from propagating through a design. Skipping that conversion once, or performing it only halfway through a chain of calculations, is how a correct schematic can still produce a board that measures half or double the expected voltage when the first prototype comes back from the assembly house.

Base units for circuit laws

Ohm's law in its SI form uses resistance in ohms, current in amperes, and voltage in volts. Working in kilohms requires a correction factor of 10^-3 when calculating current in amperes, or accepting that the resulting current will be in milliamperes. Many engineers keep values in kilohms throughout an analogue design and work in milliamperes throughout, which is internally consistent but requires explicit conversion when interfacing with power dissipation calculations in watts.²

A quick way to catch a missing conversion is to scan every resistance value in a calculation and confirm it carries the same unit before the formula is evaluated, because a single kilohm among ohm values shifts the result by three orders of magnitude and rarely triggers an obvious error at the equation stage. Treating the unit as part of the number, not a label attached afterward, keeps the discipline consistent across a multi-page derivation.

Keeping the unit chain visible

The conversion from kilohms to ohms is exact: multiply by 1000. There is no physical uncertainty, and no rounding unless the kilohm value itself is not an exact round number. Writing the full ohm value before substituting into a formula is one habit that prevents a resistor chosen for a pull-up network from being replaced by a part a thousand times smaller that would short the bus to ground the next time that net is asserted low.

Power dissipation with ohm-level calculations

Because the standard power formulas P = I²R and P = V²/R expect resistance in ohms, converting kilohms before substitution is the step that keeps thermal calculations honest. Every resistor dissipates power proportional to the square of the current through it or the square of the voltage across it, and both of those formulas demand R in ohms if the result is to come out in watts rather than in a prefixed unit that still needs a second conversion. A 22 kΩ resistor in a 5 volt feedback network carries 5 ÷ 22,000 = 0.000227 amperes, and power dissipated works out to 0.000227² × 22,000 = 0.00114 watts, well within the 0.25-watt rating of a standard through-hole resistor.³

Keeping the resistance in ohms is the safest habit for thermal checks because leaving the value as 22 kilohms without converting would produce a result in kilowatts that requires yet another step to express in watts, and that extra step is the one most easily forgotten when the design review is moving quickly. CapyToolkit converts kilohms to ohms so you can run thermal checks directly without a manual conversion step, and the resulting wattage is immediately comparable to the ratings printed on the component body.

Impedance matching and signal integrity

High-speed PCB traces are routed to precise differential impedances in the tens of ohms, and mixing kilohm-scale pull-ups with those terminations without converting to a common unit can mask significant loading errors that go unnoticed until the board fails its signal integrity test, by which point the cost of a re-spin dwarfs the effort that a quick conversion check would have required up front.

Termination values

Signal integrity in high-speed digital systems depends on matching trace impedance to source and load impedance. Differential pairs on PCBs are routed to 100 ohms differential impedance. Termination resistors of 49.9 or 100 ohms damp reflections. These values are in ohms; kilohms would describe an entirely different regime. When a designer mixes a 100 ohm line termination with a 10 kilohm pull-up for a reset line, converting both to ohms shows the pull-up contributes negligible loading: 100 Ω in parallel with 10,000 Ω gives 99 Ω, and the termination dominates the impedance. This kind of check prevents over-damping or under-terminating bus lines. CapyToolkit converts kilohms to ohms so you can verify that a pull-up resistor does not disturb the termination impedance.⁴

Shunt resistors and current sensing context

A single circuit can contain shunt resistors in the milliohm range and bias resistors in the kilohm range, and expressing both in ohms is the only way to see their relative magnitudes on a common scale. That shared representation matters because the design review that treats a 10 milliohm current-sense shunt as comparable in magnitude to a 10 kilohm pull-up will make assumptions about voltage drops and load currents that the actual circuit behaviour flatly contradicts.

The ohm as the common denominator

Current-sensing shunt resistors have values in milliohms to single-digit ohms, well below the kilohm range but worth noting as context for the scale comparison. A 10 milliohm shunt carries 10 amperes to produce 100 millivolts of sense voltage, a conversion that depends entirely on the shunt being expressed in ohms rather than in its native milliohms before being placed alongside the bias network in a single schematic column. At the other extreme, a 10 kilohm (10,000 ohm) bias resistor in the same circuit carries microamperes, which is a factor of a million smaller and only becomes visible as a relative magnitude when both resistances share the same unit.⁵

Comparing values across the full resistance range

Expressing all resistance values in ohms in the same calculation sheet makes their relative sizes immediately visible and prevents treating a 10 mΩ shunt as similar in magnitude to a 10 kΩ bias resistor. The ohm is the common denominator that unifies the full range from milliohm current sensors to megaohm isolation barriers in a consistent representation. CapyToolkit converts across the full resistance scale so you can compare values that span many orders of magnitude in a single design review.

Standard series resistor values and practical selection

When a calculated resistance falls between two standard series values, expressing both the target and the available parts in ohms prevents the ordering mistakes that occur when kilohm and ohm prefixes are mixed. Resistors are manufactured in standard value series such as E24 for 5 percent tolerance and E96 for 1 percent tolerance, and in the kilohm range E24 values include 1.0, 1.5, 2.2, 3.3, 4.7, 6.8 kΩ and many others that each correspond to a specific ohmage when multiplied by 1000. When a calculation calls for exactly 6400 ohms, the nearest available value is 6.2 kΩ (6200 Ω) or 6.8 kΩ (6800 Ω), so expressing the target in ohms and comparing against the standard series in ohms keeps the selection process in a consistent unit and removes the mental arithmetic from a step where a slip is expensive.⁶

Converting the design value to ohms before comparing against the catalogue is what prevents a designer from ordering a part a thousand times too small, such as mistaking a 5.6 kΩ requirement for a 5.6 Ω part that would deliver a thousand times the intended current and likely damage the surrounding circuit. CapyToolkit converts kilohm values to ohms before the comparison, so the decision is made on numbers that match the units on the purchase order.

Try in the tool

Convert Megaohm to Kilohm

How to convert Megaohm to Kilohm

Multiply the megaohm value by 1000 to get kilohms, since one megaohm equals exactly 1000 kilohms. Example: 2.2 MΩ × 1000 = 2200 kΩ. To reverse it, divide kilohms by 1000.¹

Common Megaohm to Kilohm conversions

The megaohm in high-impedance circuit design

Megaohm resistors serve a specialised role in analogue design by providing DC bias paths that draw negligible current, and converting them to kilohms makes it possible to compare their values directly against surrounding circuit components. Most analogue circuitry operates in the kilohm to tens-of-kilohm range, where current flows freely enough to carry useful signal energy.

High-impedance bias paths

Megaohm resistors occupy a special niche: they provide a DC bias path while drawing so little current that the voltage across them is nearly identical to the source voltage, and they have minimal effect on the signal. The gate bias resistors of junction field-effect transistors and the feedback resistors of transimpedance amplifiers fall into this category. A 10 megaohm gate bias resistor draws only 1 microampere at 10 volts, ensuring the transistor receives the intended bias without the resistor itself becoming a meaningful load on the driving stage.

A simple bench check is to confirm the bias current through such a resistor is small enough that the resultant voltage drop is negligible compared with the bias voltage you intend to set, because only then does the resistor truly act as a near-open path. Verifying this in kilohms and megaohms side by side during schematic review catches a wrong prefix before the board is built.

Keeping the scale consistent

Converting megaohms to kilohms places their values on a scale comparable to the surrounding circuit components, allowing parallel-resistance calculations and loading-error estimates to proceed in a consistent unit. The conversion is especially useful when a high-value resistor sits beside ordinary kilohm components in the same node, because the designer can then see at a glance how much the high-value element contributes to the total parallel resistance without mentally juggling different powers of ten.

RC time constants at very long durations

Combining a megaohm resistor with a microfarad capacitor produces time constants of tens or hundreds of seconds, which is the regime used in slow integrators and long-duration sample-and-hold circuits. A 10 megaohm resistor combined with a 10 microfarad capacitor produces an RC time constant of 10 × 10^6 × 10 × 10^-6 = 100 seconds.²

Expressing the resistance in kilohms (10,000 kΩ) and the capacitance in microfarads keeps the intermediate numbers readable, though the product requires care to reach seconds. Working in ohms and farads consistently avoids that confusion, because knowing that 1 MΩ = 1000 kΩ = 10^6 Ω keeps the conversion ready for any RC analysis including the long-duration integrators and automatic offset compensation loops that rely on these multi-minute time constants to function correctly.

Insulation resistance testing

Portable insulation testers measure leakage current in nanoamperes and report resistance in megaohms, but field specifications and maintenance thresholds may be written in either unit, making the conversion essential for pass-fail decisions. Motor windings, cable sheaths, and printed circuit boards all have insulation resistance specifications that the field technician must compare against measured values.³

Insulation thresholds

Portable insulation testers apply DC voltages from 500 to 5000 volts across insulation barriers and measure the resulting leakage current in microamperes or nanoamperes. Dividing the applied voltage by the leakage current gives the insulation resistance in megaohms. A transformer winding with an insulation resistance below 1 megaohm (1000 kilohms) during a dampness test warrants further investigation, because moisture ingress or aging insulation can progress to a shorted turn if the root cause is not identified and corrected.

Connecting field records to specifications

Expressing results in megaohms matches the scale of the measurement, but comparing against a specification written in kilohms requires the 1000-fold conversion. IEC 60034-27 for rotating machine stator windings expresses minimum insulation resistance in megaohms, making the megaohm the natural unit for field maintenance records. Technicians who convert readings to kilohms before comparing against a kilohm-scale specification can spot a borderline pass that would otherwise slip through as acceptable on paper.

Input impedance and measurement loading

A 10 megaohm oscilloscope input loads most sources negligibly, but when the source itself has a megaohm-scale output impedance, converting both values to kilohms before calculating the parallel combination reveals the true measurement error. Measuring instruments achieve high input impedance to avoid disturbing the circuit under test, so the loading effect is negligible in most cases.⁴

A 10 megaohm (10,000 kilohm) oscilloscope input draws only 1 microampere from a 10 volt source, an acceptable load for most signal sources. When probing the output of a sensor with an internal resistance of 1 megaohm (1000 kilohm), however, the measurement node becomes a 10 MΩ parallel 1 MΩ combination of approximately 909 kilohms, introducing a 9 percent voltage error. Expressing both impedances in the same unit, whether ohms, kilohms, or megaohms, makes the calculation straightforward, and converting megaohms to kilohms before calculating parallel resistance with a kilohm-scale source impedance keeps the intermediate numbers in a range that reduces the chance of decimal-place mistakes.

Protection and feedback resistors in precision designs

Transimpedance amplifiers for photodiode readout use feedback resistors from 1 to 100 megaohms, converting photocurrent to output voltages that span several orders of magnitude depending on the value chosen. A 1 megaohm feedback resistor converts 1 microampere of photocurrent to 1 volt of output, a convenient gain that fits comfortably inside a single-supply op-amp output swing.⁵

Conversion gain set by the feedback resistor

In optical transimpedance amplifiers for photodiode readout, feedback resistor values from 1 megaohm to 100 megaohms set the conversion gain from photocurrent to output voltage. At 100 megaohms the same 1 microampere produces 100 volts, which requires a supply voltage larger than available in most single-supply op-amp designs. Selecting the correct value therefore involves balancing the desired sensitivity against the available supply headroom, and converting to kilohms makes it easier to compare candidate values against standard resistor tables.

Why megaohm resistors come from different product families

Specifying these values in megaohms and converting to kilohms when checking component availability helps avoid ordering mistakes, since megaohm resistors come from dedicated thick-film product families that differ from standard kilohm-range general-purpose resistors. The thick-film process yields higher resistance values with acceptable tolerance and stability, but the physical layout and termination geometry differ enough that a footprint designed for a kilohm-range part cannot simply drop in a megaohm replacement without a board respin.

Practical limits of high-resistance components

Environmental factors like humidity and temperature can reduce the effective resistance of a megaohm component by half or more, which is why critical high-impedance nodes require guard rings, specialised substrates, and conformal coating. High humidity reduces the surface resistance of PCB substrate material, adding a parallel leakage path that can lower the effective circuit resistance below the nominal megaohm value.⁶

A 10 megaohm resistor soldered on standard FR4 without conformal coating may measure 5 megaohms or less in a humid environment, and hot spots on the resistor body also alter resistance through the temperature coefficient. For critical high-impedance nodes, designers specify guard rings, low-leakage substrates such as PTFE, and conformal coating to protect the high-value element from these environmental and thermal effects. Understanding these limitations starts with knowing the megaohm value that is being protected, which begins with the kilohm-to-megaohm conversion.

Try in the tool

Convert Milliohm to Ohm

How to convert Milliohm to Ohm

Divide the milliohm value by 1000 to get ohms, since one milliohm is exactly one thousandth of an ohm. Example: 100 mΩ ÷ 1000 = 0.1 Ω. To reverse it, multiply ohms by 1000.¹

Common Milliohm to Ohm conversions

The milliohm in power electronics

Power conversion circuits deal with resistances orders of magnitude lower than signal electronics, and these milliohm values determine how much voltage is dropped and how much heat is generated when tens of amperes flow through the current path. Most resistances encountered in signal circuits are in the kilohm range or above, but power conversion circuits deal with resistances several orders of magnitude lower.²

A motor winding might have 50 milliohms of DC resistance. A battery's internal resistance might be 30 milliohms. A high-current bus bar connecting a battery pack to an inverter might have only 2 milliohms across its entire length. These milliohm values have outsized importance because they determine how much voltage is dropped and how much heat is generated at high currents. Converting milliohms to ohms before computing power dissipation in the formula P = I²R is necessary because the formula in its SI form uses ohms, and a tiny resistance can become a meaningful thermal load when the current path carries tens of amperes.

Current-sensing shunt resistors

Shunt resistors convert a high current into a small but measurable voltage, and selecting the right milliohm value involves balancing sense voltage against power dissipation at the expected operating current. A 10 milliohm shunt carrying 10 amperes produces a 100 millivolt sense voltage, which falls within the input range of standard analogue front-end ICs.³

In ohms, 10 milliohms is 0.010 Ω, and the power dissipated at 10 amperes is 0.010 × 10² = 1 watt. Shunts for 100 ampere systems use 1 milliohm (0.001 Ω) values to keep sense voltage at 100 millivolts while limiting dissipation to 10 watts. The lower the shunt resistance, the less power wasted, but the smaller the sense voltage becomes, so the designer must balance efficiency against the signal-to-noise ratio the measurement circuit can tolerate.

Sense voltage and power loss

Choosing the shunt value starts from the maximum expected current and the full-scale input range of the analogue-to-digital converter. A 50 milliohm shunt at 20 amperes produces 1 volt, a common full-slope sense voltage for battery fuel gauges. Converting to ohms first keeps the power formula P = I²R straightforward and avoids the milliwatt-scale errors that creep in when intermediate values stay in milliohms.

A practical rule is to keep the shunt resistance in milliohms while the current stays in amperes, then convert once at the power step, because doing the conversion early and rounding along the way is how small but real losses get lost. Writing the unit next to each intermediate value in the notebook keeps the chain auditable when the design is reviewed later.

Tight tolerances for accurate current measurement

Manufacturers specify shunt resistance in milliohms with tight tolerances of 0.1 to 0.5 percent to maintain current measurement accuracy. Converting to ohms ties the spec to Ohm's-law calculations that produce voltage and power in their SI base units. A 0.5 percent error on a 10 milliohm shunt translates to 50 micro-ohms of uncertainty, which at 100 amperes produces a 5 millivolt offset that the measurement system must either calibrate out or accept as a systematic error in every reading.

Connector and switch contact resistance

Every electrical connection adds contact resistance, and in a high-current chain with many connectors these milliohm values multiply to produce significant additional heating that must be accounted for in the power budget. Crimp connections are typically 1 to 3 milliohms. Relay contacts in a sealed relay are under 100 milliohms when new and may rise to several hundred milliohms as arcing and oxidation degrade them.⁴

Terminal blocks and PCB-mount connectors are specified at under 20 milliohms per contact at low current. In a high-current chain with many connectors, milliohm contact resistances multiply: 10 contacts at 5 milliohms each contribute 50 milliohms, which at 50 amperes produces 0.05 × 50² = 125 watts of additional heating above the conductor's own dissipation. Designers check these contributions by converting milliohms to ohms and summing through the power formula for the entire current path, since even modest per-contact resistances become a meaningful thermal budget line item when dozens of contacts sit in series on the same high-current net.

Four-wire resistance measurement

Below about 1 ohm, ordinary two-wire measurement fails because the lead resistance of the test probes becomes comparable to the unknown, making four-wire Kelvin measurement the standard technique for accurate milliohm readings. Four-wire measurement eliminates lead resistance by sourcing current through one pair of leads and measuring voltage through a separate pair, so the resistance is V/I in ohms with no lead error term.⁵

A high-quality micro-ohmmeter resolves down to 0.001 milliohms, or 10^-6 ohms. This resolution matters when checking a 5 milliohm bus bar joint against a 10 milliohm acceptance limit, because the difference between a good connection and a marginal one sits at the micro-ohm scale that only a Kelvin setup can distinguish reliably.

Why two-wire measurement fails below 1 ohm

Measuring resistances below about 1 ohm with ordinary two-wire connections introduces errors because the lead resistance of the test probes is comparable to the unknown. Even a 100 milliohm lead resistance swamps a 5 milliohm shunt measurement, making the reading meaningless without the Kelvin separation of current and voltage paths. The problem worsens as the unknown resistance drops further into the milliohm range, because the lead resistance becomes a larger fraction of the total reading and the measurement instrument cannot distinguish the part under test from the probes attached to it.

Instruments that report in milliohms by convention

Converting the result from milliohms to ohms places it in the correct form for Ohm's law calculations. Battery internal resistance testers, DC winding resistance testers, and contact resistance analysers all report in milliohms by convention, since the values would be a chain of zeros after the decimal in ohms. Technicians who work across these instruments develop an instinct for the milliohm-to-ohm shift that keeps their spot-checks consistent without a calculator.

PCB trace resistance in power delivery

High-current PCB traces in battery management systems and motor controllers have meaningful resistance in the milliohm range, and at operating currents this translates to voltage drops and dissipation that must be checked against design limits. Standard 1 oz copper at 1 mm width has a resistance of roughly 0.5 milliohms per millimetre of length, so even a short trace can add up to a non-trivial series resistance when the current path runs far from the power source.⁶

Trace resistance at 1 oz copper

High-current PCB traces such as those in battery management systems, motor controllers, and power amplifiers have meaningful resistance in the milliohm range. A 50 mm power trace 2 mm wide carries about 12.5 milliohms. The resistance scales inversely with trace width, so doubling the width halves the resistance, and designers working under tight voltage-drop budgets often find themselves requesting wider traces or heavier copper weights from the fabrication house to squeeze the milliohm total down.

Voltage drop and dissipation at 3 amperes

At 3 amperes that is 12.5 × 10^-3 × 9 = 112.5 milliwatts of dissipation and a voltage drop of 12.5 × 10^-3 × 3 = 37.5 millivolts. Using milliohms directly in these calculations and converting to ohms only at the final power formula step keeps the intermediate numbers readable. CapyToolkit converts milliohms to ohms so you can move between the resistor notation and the circuit analysis formula without a manual step.

Try in the tool

Convert Kilohm to Megaohm

How to convert Kilohm to Megaohm

Divide the kilohm value by 1000 to get megaohms, since one megaohm equals exactly 1000 kilohms. Example: 2200 kΩ ÷ 1000 = 2.2 MΩ. To reverse it, multiply megaohms by 1000.¹

Common Kilohm to Megaohm conversions

Scaling up from kilohms to megaohms

When a design calculation produces a resistance in the thousands of kilohms, converting to megaohms makes it easier to search component catalogues and compare against specifications that use the larger prefix. Resistance values above roughly 100 kilohms are sometimes listed in megaohms by component suppliers, application notes, and circuit schematics.²

When resistance leaves the ordinary range

Converting between the two units is a factor of 1000, the same kilo-to-mega step that applies to any pair of adjacent SI prefixes. The conversion direction, kilohms to megaohms, is less common in day-to-day work but essential when a design calculation produces a resistance in kilohms and the available catalogue starts at megaohm values, or when a specification document uses megaohms and the simulation tool expects kilohms. Designers working on high-impedance analogue circuits encounter this situation regularly, because the same numeric value can represent a kilohm part in one context and a megaohm part in another.

A quick safeguard during schematic review is to annotate each high-value resistor with its prefix in plain text next to the symbol, because the part number and the schematic often disagree on scale and the discrepancy is easiest to spot before the netlist is finalised. Keeping the kilohm and megaohm views side by side also makes it straightforward to check that a bias current stays in the expected microampere range.

Catching the 2.2 MΩ versus 2.2 kΩ mix-up

Understanding both representations of the same resistance prevents misidentifying a 2.2 MΩ part as requiring a 2.2 kΩ component. It also helps you recognise when a calculated resistance is too high for a normal bias network. The mix-up is easy to make when a schematic symbol carries no prefix and the surrounding context does not make the scale obvious, so converting explicitly with a tool removes the ambiguity before a wrong part is ordered and a board comes back with a pull-up network that cannot pull anything up.

High-value resistors and their applications

In the megaohm range, resistors serve specialised roles like gate bias for FETs and feedback in transimpedance amplifiers, where drawing minimal current is more important than carrying signal energy. Gate bias for JFET and MOSFET amplifiers needs a path to ground without drawing significant current; a 10 megaohm (10,000 kilohm) bias resistor conducts only 0.5 microamperes from a 5 volt supply.³

Transimpedance amplifiers for weak photodetectors use megaohm feedback to achieve high conversion gain. Radiation and particle detection instruments use up to 100 megaohm resistors in charge-sensitive pre-amplifiers. In each case, the resistance value originates in the design calculation in kilohms or ohms before being converted to megaohms for catalogue searches and component footprint selection, because the component suppliers that stock high-value parts list them on the megaohm scale.

Insulation resistance and high-resistance metrology

New cable insulation and motor windings present resistances in the hundreds or thousands of megaohms, and converting simulation results from kilohms to megaohms ensures the calculated value matches the scale used in field measurements. Insulation resistance is the resistance between a conductor and its surrounding insulation or ground path.⁴

Standards such as IEC 60060 for high-voltage testing and NEMA MG-1 for motor insulation specify minimum resistances in megaohms. A newly commissioned 11 kV cable might show 5000 megaohms, which is 5,000,000 kilohms. Routine maintenance targets are set in megaohms, and polarisation index tests compare ten-minute and one-minute megaohm readings to assess insulation quality. Converting a simulation result in kilohms to megaohms ensures the calculated insulation resistance matches the measurement scale, so the engineer can compare the predicted value against the field reading without a second conversion step.

Frequency response limitations from megaohm impedances

Parasitic capacitances in the picofarad range form low-frequency poles with megaohm resistors, setting bandwidth limits that can be as low as a few kilohertz unless the layout is carefully controlled. A 10 megaohm (10,000 kilohm) node with 2 picofarads of total stray capacitance has a time constant of 10^7 × 2 × 10^-12 = 20 microseconds, setting an upper bandwidth limit of about 8 kilohertz.⁵

Above this frequency the impedance of the parasitic capacitor falls below that of the resistor, and the signal is shunted to ground. Designers working above a few kilohertz with megaohm impedances must account for this limitation by reducing stray capacitance through careful PCB layout and guarding, and by using buffered followers at the high-impedance node before driving any cable. The guard ring surrounds the high-impedance trace with a driven conductor at the same potential, so leakage currents from nearby supply rails flow to the guard rather than into the signal node.

Converting kilohms to megaohms in simulation

SPICE and similar simulators require the user to select the correct multiplier suffix, and converting kilohms to megaohms before entering a value prevents the factor-of-1000 netlist errors that produce obviously wrong simulation results. A 4.7 megaohm (4700 kilohm, or 4,700,000 ohm) resistor is entered as 4.7Meg or 4700k depending on the simulator's syntax.⁶

SPICE suffixes and the base-unit requirement

Circuit simulation tools such as SPICE accept resistance in ohms and require the user to convert kilohm and megaohm values into the base unit or use a multiplier suffix. The most common suffixes are k for kilohms and M or Meg for megaohms, but some simulators are case-sensitive and treat M as milli- rather than mega-, so the documentation for the specific tool must be checked before a large netlist is committed.

Preventing a factor-of-1000 netlist error

Converting the design value from kilohms to megaohms first, then selecting the appropriate SPICE suffix, prevents entering a 4.7 kilohm value (4700 Ω) when a 4.7 megaohm (4,700,000 Ω) was intended. CapyToolkit handles the kilohm-to-megaohm conversion so you can confirm the numeric value before typing it into a netlist. Catching this error before running a simulation saves the hours that would otherwise be spent debugging a circuit that simulates correctly on paper but produces waveforms that make no physical sense.

Practical limits of high-resistance components

On standard FR4 without conformal coating, a 10 megaohm resistor can measure half its nominal value in humid conditions because the substrate surface conducts in parallel, which is why critical high-impedance nodes demand specialised layout techniques. High humidity reduces surface resistance of the PCB substrate, adding a parallel leakage path that lowers effective circuit resistance.⁷

A 10 megaohm resistor soldered on FR4 without conformal coating may measure 5 megaohms or less in a humid environment because the FR4 surface conducts in parallel. Temperature also alters resistance through the component's temperature coefficient, so a part that reads correctly at room temperature may drift by several percent across the operating range of an outdoor enclosure.

FR4 surface leakage in humid conditions

The leakage path across an uncoated FR4 surface is not a clean resistor but a distributed network that varies with humidity, contamination, and the age of the board. Ionic residues from the soldering process can lower the surface resistance further, which is why a board that passes testing at the factory may develop marginal performance after a few years in the field unless the layout accounts for the possibility.

Guard rings, PTFE, and conformal coating

For critical high-impedance nodes, designers specify guard rings, low-leakage substrates such as PTFE, and conformal coating. Understanding these limitations starts with knowing the megaohm value that must be maintained, which begins with the kilohm-to-megaohm conversion. CapyToolkit provides that step clearly, so the designer can verify the intended resistance before selecting the protective measures that will keep it stable over the lifetime of the product.

Try in the tool

Convert Picofarad to Nanofarad

How to convert Picofarad to Nanofarad

Divide the picofarad value by 1000 to get nanofarads, since one nanofarad equals exactly 1000 picofarads. Example: 470 pF ÷ 1000 = 0.47 nF. To reverse it, multiply nanofarads by 1000.¹

Common Picofarad to Nanofarad conversions

Picofarads and nanofarads in the capacitor range

Capacitors span more than 12 orders of magnitude from picofarad MEMS structures to farad-class supercapacitors, and the picofarad-to-nanofarad boundary at 1000 pF is where parasitic coupling values give way to intentional bypass and load components. The picofarad covers the range from roughly 1 pF (parasitic coupling on a PCB trace) to 999 pF (small ceramic bypass, crystal load), while the nanofarad picks up from 1 nF through 999 nF before microfarads take over.²

The transition from parasitics to parts

The boundary between these two prefixes falls at 1000 pF = 1 nF, and components in this transition zone are sometimes listed in either unit by different catalogues. A 470 pF crystal load capacitor and a 470 nF bypass capacitor share the same numeric value but differ by a factor of one million, so the prefix is the only thing that tells you which part you are actually holding when you reach into the component bin.³

A practical habit is to read the full value including the prefix directly from the reel label before placing a part, because the numeric value alone is meaningless across this boundary and the wrong prefix silently changes the circuit. Keeping a small reference list of common passives with their full units makes the translation between catalogues automatic.

Why the 1000:1 relationship matters

Understanding the exact 1000:1 relationship ensures you can compare capacitor values from different sources without accidentally treating a 100 pF and a 100 nF part as interchangeable, a mistake that would shift an RC filter cutoff by a factor of 1000.⁴ In RF and timing circuits, that shift is large enough to move a design from working to unusable.

RF and high-frequency circuit capacitors

At radio frequencies, even capacitors in the tens of picofarads have reactances low enough for bypassing and filtering, and RF designers must work comfortably across both picofarad and nanofarad units within the same schematic. A 100 pF capacitor has a reactance of 1/(2π × 100 × 10^6 × 100 × 10^-12) ≈ 15.9 ohms at 100 MHz, making it useful for bypassing and filtering at that frequency.⁵

Expressed in nanofarads, 100 pF is 0.1 nF. RF circuit design often mixes both units in the same schematic, with small coupling capacitors in picofarads and larger bypass components in nanofarads. When calculating impedance matching networks or filter poles, converting all capacitors to the same unit before substituting into formulas prevents errors where a picofarad value appears where a nanofarad was needed, a mistake that would shift the filter cutoff frequency by a factor of one thousand and render the matching network ineffective.

Crystal oscillator load capacitance

Quartz crystals require a precise load capacitance to hit their rated frequency, and because that capacitance is typically in the low picofarads, oscillator design and load capacitor selection always happen in the picofarad unit. A typical 32.768 kHz tuning-fork crystal specifies a 12.5 picofarad load capacitance that the surrounding circuit must present to pull the oscillator onto its marked frequency.⁶

Crystal load values

Since the load is split between two capacitors from each crystal pin to ground, each capacitor is about 22 picofarads minus the stray circuit capacitance of 3 to 5 picofarads, giving about 18 picofarads per capacitor. These values are always expressed in picofarads because the nanofarad equivalent of 0.022 nF would give a misleading scale to someone unfamiliar with the circuit. Converting to nanofarads for a parts list comparison is straightforward, but oscillator specification and load capacitor selection always happen in picofarads.

EIA capacitor marking codes

Capacitors marked with a three-digit code on their bodies use picofarads as the base unit. The code 103 means 10 × 10^3 picofarads = 10,000 pF = 10 nF. The code 472 means 47 × 10^2 = 4700 pF = 4.7 nF. Reading these codes requires converting from the picofarad result to nanofarads for comparison against a bill of materials that uses nanofarads. A purchasing engineer who misreads 104 (100,000 pF = 100 nF = 0.1 µF) as a nanofarad value directly will order the wrong component.⁷ Understanding the picofarad base of the marking code and applying the 1000:1 conversion to nanofarads is a basic component-handling skill.

Impedance at different frequencies

The impedance of a capacitor drops predictably with frequency, and the same component can be expressed in picofarads, nanofarads, or microfarads without changing the underlying physics, though the readability of the numbers varies dramatically. A 1000 pF (1 nF) capacitor has an impedance of 159 ohms at 1 MHz, 15.9 ohms at 10 MHz, and 1.59 ohms at 100 MHz.⁵

Expressing the same capacitor as 0.001 µF or 1 nF or 1000 pF does not change the physics, but it does change how easily the numbers read. RF engineers often keep capacitances in picofarads throughout a high-frequency design, since the nanofarad and microfarad values would be fractional decimals. Analogue audio engineers work in nanofarads and microfarads, where picofarad expressions would require four-digit numbers. The picofarad-to-nanofarad conversion bridges these two conventions, and CapyToolkit handles the arithmetic so you can stay in your preferred unit and convert only at project boundaries.

Try in the tool

Convert Nanofarad to Microfarad

How to convert Nanofarad to Microfarad

Divide the nanofarad value by 1000 to get microfarads, since one microfarad equals exactly 1000 nanofarads. Example: 100 nF ÷ 1000 = 0.1 µF. To reverse it, multiply microfarads by 1000.¹

Common Nanofarad to Microfarad conversions

Nanofarads at the boundary with microfarads

The nanofarad range bridges the gap between small RF capacitors and bulk decoupling components, and the ubiquitous 100 nF bypass capacitor appears as either 100 nF or 0.1 µF depending on which convention the document follows. Capacitors in this range show up across digital power rails, audio coupling networks, and precision timing circuits, so the ability to move between nanofarads and microfarads is a routine part of reading a schematic, comparing datasheets, and selecting a physical part for the bill of materials.

Decoupling and coupling values

The nanofarad occupies the capacitance range between small RF capacitors in picofarads and the bulk decoupling and filtering capacitors in microfarads. Signal coupling capacitors, audio high-pass filters, and small timing networks commonly use nanofarad values. The universal 100 nF decoupling capacitor, placed across every digital IC supply pin, is the most common single component in digital electronics², and it appears as 100 nF or 0.1 µF depending on the document's origin. Because the 100 nF value is so widespread, component distributors and circuit designers regularly need to reconcile BOM entries written in nanofarads with reference designs written in microfarads.

When a reference design and a supplier catalogue disagree on the prefix for the same part, the safest move is to convert both to the same unit and confirm they describe the identical capacitance before committing the BOM. This small check catches the case where a 100 nF entry is mistakenly matched to a 100 µF part that would swamp the supply rail with unnecessary bulk capacitance.

Why the 1000 factor matters at this boundary

The conversion factor is exactly 1000, so a 10 nF capacitor is 0.010 µF and a 470 nF capacitor is 0.47 µF. Navigating these descriptions confidently prevents component selection errors at the nanofarad-to-microfarad boundary. The 1000-to-one ratio also means that a single misplaced decimal point swaps a small ceramic bypass capacitor for an electrolytic bulk part that is physically far larger and has different frequency behaviour, which is why confirming the prefix before placing an order is a worthwhile habit even when the number on the schematic looks familiar at first glance.

RC filter time constants in nanofarads and microfarads

Audio and instrumentation filters rely on RC time constants that fall in the audio frequency range when nanofarad capacitors are paired with kilohm resistors, making the nanofarad the natural unit for signal conditioning design. The same RC product determines both the cutoff frequency of a filter and the delay of a timing stage, so being comfortable with the nanofarad-to-microfarad shift helps when a reference design lists the capacitor in a different prefix than the parts bin on the bench.

High-pass and low-pass RC filters for audio and instrumentation applications use capacitors in the nanofarad to microfarad range. A first-order low-pass filter cutoff frequency is f = 1/(2πRC). Using 100 nF (10^-7 F) with a 10 kilohm resistor gives f = 1/(2π × 10^4 × 10^-7) ≈ 159 hertz³. Using 10 nF with the same resistor shifts the cutoff to 1590 hertz. These frequencies lie in the audio range, making nanofarad capacitors the natural choice for audio signal conditioning, and converting nanofarads to microfarads when selecting from the bulk-capacitor section of a catalogue ensures you do not accidentally choose a large electrolytic where a small ceramic or film part is appropriate.

Film capacitors for audio and power electronics

Film capacitor manufacturers specify smaller values in nanofarads and larger ones in microfarads, so understanding that 330 nF and 0.33 µF describe the same part is essential for comparing cross-references across suppliers. The boundary sits in a range that many designs straddle, and a capacitor that one datasheet lists as 470 nF may appear in a distributor search under 0.47 µF, so recognising the equivalence keeps a bill of materials consistent across sourcing channels.

Metallised polyester and metallised polypropylene film capacitors are specified in nanofarads for smaller values and microfarads for larger ones, with the boundary around 100 nF to 1 µF depending on the manufacturer. A 330 nF film capacitor (0.33 µF) is a common EMI suppression component across relay contacts or at AC motor terminals⁴. A 2.2 nF polystyrene film capacitor tunes a crystal oscillator feedback network. Understanding that 330 nF and 0.33 µF are the same value and that both catalogue listings describe identical parts allows you to compare cross-reference options across multiple suppliers without confusion.

Tolerance and temperature coefficients in nanofarad capacitors

Ceramic capacitors in the nanofarad range come in temperature coefficient classes that differ by more than an order of magnitude in stability, and choosing the wrong class can shift a precision filter or oscillator far off target. The distinction matters most when a design depends on a capacitor holding its value across temperature, voltage, and time, which is exactly the case in precision timing networks, resonant tank circuits, and narrow-band filters.

C0G (NP0) ceramics maintain capacitance to within ±0.5 percent over the full temperature range and are used for precision filtering, timing, and resonant circuits⁵. X7R ceramics vary by up to ±15 percent over -55°C to +125°C and are used for bypass and coupling where temperature stability is less critical, but a 100 nF X7R may not substitute for a 100 nF C0G in a precision tuned circuit even though their nanofarad values match, because the X7R part can drift by more than 15 percent under temperature and voltage stress while the C0G part stays within a fraction of a percent. Splitting the selection into two steps, first choosing the temperature class and then converting the nanofarad value to microfarads for catalogue comparison, keeps the substitution process from hiding a class mismatch behind a numerically equivalent capacitance.

EMI filter capacitors and safety classes

Safety-rated capacitors for AC power line EMI filters are specified by both capacitance and safety class, and the values that matter for leakage current limits fall squarely in the nanofarad-to-microfarad transition zone. Selecting the right part therefore requires checking both the capacitance value and the safety class marking, because a component that meets the capacitance requirement but lacks the appropriate safety rating cannot be substituted into a mains-connected filter without failing compliance testing.

Y2 and X2 safety capacitor values

X and Y safety capacitors used in AC power line EMI filters are specified by both capacitance and safety class. Y2 capacitors from 1 nF to 33 nF limit leakage current to under 0.5 milliamperes in Class I equipment⁶. X2 capacitors in the 100 nF to 470 nF (0.1 to 0.47 µF) range handle high-frequency bypass across the live and neutral conductors. Specifying these values in nanofarads matches the X2 and Y2 catalogue sizes, while converting to microfarads allows comparison with larger X1 and Y1 parts often listed in microfarads, so the ability to move between prefixes helps when a design references a safety capacitor using a different unit than the one on the physical part.

Practical conversion checks for component substitution

When substituting a capacitor during repair or redesign, confirming the nanofarad-to-microfarad equivalence before accepting a replacement is the quick step that prevents a frequency-sensitive circuit from drifting out of spec. The check is especially important when the original schematic lists the part in nanofarads but the replacement parts on the bench are labelled in microfarads, or the other way around, because a mismatch that looks small on paper can move a filter cutoff or timing interval well outside the intended window.

When a repair or redesign requires substituting a capacitor, the value must match within the original's tolerance. A 100 nF capacitor with ±10 percent tolerance allows any value from 90 nF to 110 nF⁷. Expressed in microfarads, that is 0.090 µF to 0.110 µF. A substitute 0.1 µF (100 nF) part from a different manufacturer within the same tolerance class is acceptable, but only after confirming that the prefix has not been misread, because a 10 µF part labelled in microfarads is a thousand times larger than a 10 nF part labelled in nanofarads.

Try in the tool

Convert Microfarad to Farad

How to convert Microfarad to Farad

Divide the microfarad value by 1,000,000 to get farads, since one farad equals exactly one million microfarads. Example: 100 µF ÷ 1,000,000 = 0.0001 F. To reverse it, multiply farads by 1,000,000.¹

Common Microfarad to Farad conversions

Why the farad is almost never seen on a capacitor label

The farad is the SI unit of capacitance but represents such a large value that even the biggest aluminium electrolytic capacitors reach only a fraction of a farad, which is why the six-place decimal shift from microfarads to farads is a routine step in every formula-based calculation. The farad stores one coulomb of charge for every volt across its terminals, and achieving that with conventional dielectrics demands an enormous physical structure, which is why the biggest power supply electrolytics top out at 100,000 microfarads, or only 0.1 farads.²

Most circuit capacitors sit in the picofarad to microfarad range, orders of magnitude below one farad, so the farad appears in formulas but not on labels, and every formula-based calculation requires converting the microfarad value from the datasheet to the farad value the formula expects. That six-place shift from µF to F is a routine part of design review, and treating it as automatic helps prevent the off-by-a-million mistakes that come from substituting the wrong prefix.

Energy storage calculations

The energy stored in a capacitor is proportional to capacitance and the square of voltage, and converting microfarads to farads before entering the formula is the step that keeps the result in joules rather than microjoules. Capacitor energy storage is given by E = ½CV², where E is joules, C is farads, and V is volts. A 4700 µF electrolytic at 35 volts stores ½ × 0.0047 × 1225 = 2.88 joules.³ That 2.88 joules is enough to energise a camera flash, restart a small microcontroller after a power glitch, or supply a few milliseconds of peak current to a motor, and converting microfarads to farads before entering C into this formula is the step that produces a correct joule result, because entering 4700 without converting would yield 2,880,000 joules, which is obviously wrong.

Protecting energy estimates for supercapacitors

For engineers who run these calculations daily, converting µF to F by placing the decimal six places to the left becomes automatic. The same check also protects energy estimates for supercapacitors and backup circuits. A 10 F supercapacitor at 2.7 V stores 36.5 joules, a figure that is only meaningful because the farad value is used directly in the formula.

A reliable habit is to convert the capacitance once at the top of the worksheet and keep every later calculation in farads, because re-converting at each step is where a stray decimal place tends to appear. That discipline keeps energy estimates consistent whether the part is a 4700 µF electrolytic or a 10 F supercapacitor.

Capacitive reactance in circuit analysis

Capacitive reactance drops with increasing frequency, and the standard formula Xc = 1/(2πfC) expects capacitance in farads, so skipping the conversion from microfarads produces results that are off by a factor of one million. Capacitive reactance is the frequency-dependent impedance a capacitor presents to alternating current: Xc = 1/(2πfC), with f in hertz and C in farads for Xc in ohms. A 100 µF capacitor at 60 hertz has Xc = 1/(2π × 60 × 10^-4) = 26.5 ohms⁴. At 1 kilohertz the same capacitor has only 1.59 ohms, and these low reactances make large microfarad-range capacitors effective for power supply filtering and audio coupling.

Substituting the microfarad value directly for C without converting to farads produces reactances 10^6 times larger than the correct values, placing them in the megaohm range, a clear error for any experienced designer. A 100 µF capacitor entered as 100 in the formula would give a reactance of 0.0000265 ohms instead of 26.5 ohms, a result that would mislead any filter design. CapyToolkit converts microfarads to farads so you can enter the correct value with confidence.

Supercapacitors: when farads become practical

Electric double-layer capacitors achieve capacitances in the farad-to-kilofarad range by exploiting activated carbon electrodes with enormous surface areas, making the farad a practical component label for the first time. Also known as supercapacitors or ultracapacitors, these parts are engineered for applications that need far more energy storage than a conventional electrolytic can provide in the same volume, and they fill the gap between high-capacitance batteries and fast-discharge capacitors.

Activated carbon electrodes and the farad-to-kilofarad range

Electric double-layer capacitors achieve their capacitance by building up charge at the interface between porous activated carbon electrodes and a liquid electrolyte, which gives them an effective surface area thousands of times larger than a conventional film or ceramic part.⁵ A 10 F supercapacitor is 10,000,000 µF, and at 2.7 volts it stores ½ × 10 × 7.29 = 36.5 joules, enough to power a small motor or a microcontroller backup circuit for several seconds.

From regenerative braking to backup power

Supercapacitors are used for regenerative braking energy recovery in trains and cranes, where the recovered energy is stored in farads and returned within seconds during the next acceleration. Converting the farad capacity of a supercapacitor to microfarads gives a large number that illustrates the gap between conventional electrolytic capacitors and supercapacitor technology. A 100 F supercapacitor at 2.7 V stores 364.5 joules, enough to power a small motor for several seconds.

Converting for simulation and modelling

SPICE and similar simulators require capacitance in farads or a correctly suffixed value, and entering a microfarad figure without the proper prefix is one of the most common netlist errors. SPICE circuit simulators accept suffix notation, so a value entered as 10u means 10 microfarads, which the simulator converts internally to 10^-5 farads.⁶ A value of 100 without a suffix is interpreted as 100 farads in some simulators, an enormous and unintended value that will produce obviously wrong simulation results, and the safest practice is to always specify the unit suffix and verify by converting the value to farads mentally before committing the netlist.

Confirming values before they go into the netlist

A 4.7 µF capacitor entered as 4.7 in SPICE would be interpreted as 4.7 farads, a value large enough to simulate a supercapacitor rather than a bypass capacitor. Converting microfarads to farads first (4.7 × 10^-6 F) and entering the value as 4.7u prevents this error, and CapyToolkit performs that conversion so you can confirm the numerical value before it goes into the simulation netlist. A 1000 µF bulk capacitor is 0.001 F, entered as 1m in SPICE, and a 10 nF ceramic is 10^-8 F, entered as 10n, so checking the suffix against the farad value keeps the netlist from silently simulating a part that is orders of magnitude off.

Try in the tool

Convert Farad to Microfarad

How to convert Farad to Microfarad

Multiply the farad value by 1,000,000 to get microfarads, since one farad equals exactly one million microfarads. Example: 0.5 F × 1,000,000 = 500,000 µF. To reverse it, divide microfarads by 1,000,000.¹

Common Farad to Microfarad conversions

Supercapacitors and the farad scale

Supercapacitors changed the farad from a theoretical unit that existed only in formulas into a practical component label, and converting their ratings to microfarads reveals just how vast the capacitance gap is relative to conventional electrolytics. The Farad is so large that a one-farad capacitor built with conventional electrolytic geometry would be the size of a filing cabinet, so the appearance of component-level farad ratings is a direct consequence of the electrochemical double-layer effect that multipliers electrode surface area by orders of magnitude.

For most of electronics history the farad was a theoretical unit that existed in formulas but appeared on no product label. Supercapacitors changed that. Electric double-layer capacitors store charge in an ion-rich layer at the surface of highly porous activated carbon electrodes, achieving surface areas of 1000 to 2000 square metres per gram of electrode material.² The resulting capacitance is millions of times larger than a conventional electrolytic and is naturally expressed in farads, and a 10 F module at 2.7 V stores 36.45 joules, which is already enough for many backup and ride-through use cases.

That same 10 F module expressed in microfarads is 10,000,000 µF, a nine-digit number that makes the farad label immediately sensible on a component label or a bill of materials. The microfarad form has its own value, though, because most system documents continue to list ordinary decoupling and filter capacitors in microfarads, and being able to express a supercapacitor and an electrolytic side by side in the same unit makes orders-of-magnitude comparisons intuitive across a design that mixes both energy-storage technologies.

Understanding this scale helps engineers compare supercapacitor and electrolytic solutions for energy buffer applications across both technologies. A design might hold 10,000 µF of aluminium electrolytic on a 25 V rail for bulk filtering and add a 10 F supercapacitor on the same node for surge support, and converting both values to the same unit makes it obvious how many orders of magnitude separate the two charge reservoirs. The 1000-fold difference between the largest conventional electrolytics and a modest 1 F supercell is large enough that a unit mismatch between farads and microfarads in the same BOM silently swaps a component millions of times larger or smaller than intended.

Energy density comparison between farads and microfarads

Expressing both supercapacitor and electrolytic capacitances in microfarads makes the scale difference visible, and the energy stored in each technology reflects both the capacitance gap and the voltage limitations of each chemistry. A design team evaluating whether to hold energy in a 10,000 µF electrolytic or a 10 F supercapacitor must compare not only the raw capacitance but also the voltage ceiling, the series resistance, and the physical volume each technology demands at a given energy target.

Comparing capacitance scales

Energy stored in a capacitor is E = ½CV². A 10,000 µF aluminium electrolytic at 25 V stores ½ × 0.010 × 625 = 3.125 joules. A 10 F supercapacitor at 2.7 V stores ½ × 10 × 7.29 = 36.45 joules³, about twelve times more energy despite a lower operating voltage, thanks to the hundred-fold increase in capacitance. Expressing both capacitances in microfarads gives 10,000 µF and 10,000,000 µF, making the 1000-fold difference in capacitance visible and helping explain the energy gap that emerges when a designer tests a candidate technologies matrix against both a power budget and a physical volume allocation.

Why voltage limits the energy advantage

The lower voltage of the supercapacitor limits the full benefit of the higher capacitance but still yields a ten-to-hundred-fold energy advantage over electrolytics for the same physical volume. The voltage ceiling per cell, typically 2.5 to 2.7 volts for carbon-based electrochemical double-layer cells, means that a bank storing useful energy at a system-level voltage such as 48 volts requires many cells in series, and each additional cell adds balancing and monitoring overhead that narrows the practical system-level advantage designers can expect.

Backup power and ride-through applications

For hold-up and ride-through applications, a supercapacitor's farad rating translates directly into backup time through the energy formula, and converting to microfarads illustrates why even a modest supercapacitor surpasses the largest electrolytics. The power budget during the hold-up window, the acceptable voltage droop before the load drops out, and the duty cycle of the discharge together define the minimum farad rating, and those three inputs form a simple design triangle that conversion between farads and microfarads keeps consistent across design documents.

Supercapacitors compete with small batteries for hold-up and ride-through applications where a brief energy burst is needed to survive a power glitch or enable a controlled shutdown. A 10 F supercapacitor at 5 V stores 125 joules. At a constant 2 watt load, that provides 62.5 seconds of backup³, enough to complete a data write to non-volatile memory or broadcast a last-position beacon. Converting 10 farads to microfarads gives 10,000,000 µF, illustrating why even a modest supercapacitor surpasses the tens of thousands of microfarads available from large electrolytics.

The farad is the natural unit for backup time calculations because the energy formula E = ½CV² uses farads directly. A 10 F supercapacitor at 5 V stores 125 joules; expressing the same capacitance as 10,000,000 µF would require converting to farads before the formula works. The microfarad form is useful mainly for scale comparisons with conventional capacitors, since a 10,000 µF electrolytic is already near the practical limit for through-hole or surface-mount parts, and comparing it against 10,000,000 µF makes the design implications of the technology gap immediately visible on the same number line.

Equivalent series resistance and power delivery

A supercapacitor's equivalent series resistance limits its peak current output and determines heating during charge and discharge, making ESR just as important as the farad rating when selecting a cell for high-power applications. The ESR value printed on a datasheet is measured at a specific frequency, typically 1 kHz or 100 Hz depending on the manufacturer, and the effective resistance at the actual switching or pulse frequency of the application can be substantially different, so a designer who ignores the frequency dependence risks undersizing the cell for the real thermal and voltage-sag constraints of the circuit.

ESR limits peak current in farad-range cells

A supercapacitor's equivalent series resistance (ESR) limits its peak current output and determines heating during charge and discharge. A 1 F cell with 100 milliohm ESR can deliver a peak current of about 2.7 V ÷ 0.1 Ω = 27 amperes⁴, but only briefly before the voltage sags. Converted to microfarads, 1 F is 1,000,000 µF; such a capacitance in an electrolytic form would have far higher ESR due to different electrode construction.

Two supercapacitors with the same farad rating but different ESR values will deliver very different peak currents. A 1 F cell with 50 mΩ ESR can deliver 54 A peak, while a 1 F cell with 200 mΩ ESR delivers only 13.5 A. The capacitance in farads tells you the energy capacity, defining how long the cell can sustain a given load, while the ESR in milliohms tells you the power capability, defining how hard the cell can drive a low-impedance load before the internal voltage drop chokes the output.

Reading ESR and farad ratings together for pulsed loads

Selecting a supercapacitor for a pulsed-load application therefore requires reading both parameters and checking ESR at the relevant pulse frequency, because the effective resistance may rise at higher frequencies where the porous electrode structure no longer fully participates in charge transfer. CapyToolkit performs the conversion for any value you enter so you can compare cells on a consistent scale across datasheets that mix milliohm and microohm specifications.

Regenerative braking and industrial energy recovery

Regenerative braking systems in trains and cranes store recovered kinetic energy in supercapacitor banks rated in thousands of farads, and converting those ratings to microfarads produces nine-digit numbers that illustrate the scale gap relative to conventional capacitor technology. The choice between supercapacitors and batteries for regenerative buffering depends on cycle life, charge acceptance rate, and total cost of ownership over the vehicle service period, and the comparison becomes concrete only when the candidate energy-storage technologies are compared at the same voltage and capacitance ratings that the braking duty cycle actually requires.

Traction supercapacitor modules in trains and cranes

Regenerative braking systems in metro trains, cranes, and forklifts recover kinetic energy during deceleration, storing it in onboard supercapacitor banks and returning it to the drivetrain or the power grid during the next acceleration cycle. A traction supercapacitor module for a tram might consist of 150 cells each rated at 3000 F at 2.7 V, connected in series and parallel combinations to achieve a bank voltage near 750 V with a usable capacitance of several farads at that voltage.⁵ The braking event lasts only a few seconds, so the supercapacitor bank must absorb a large amount of energy in a short window, and the farad rating directly constrains how much kinetic energy can be captured before the bank reaches its voltage ceiling and the remaining energy must be dumped into a resistor or returned to the grid through a bidirectional converter.

The farad versus microfarad scale gap

Converting the cell's 3000 F rating to microfarads gives 3,000,000,000 µF, a nine-figure value that belongs to a different design regime than the 4700 µF electrolytic backup capacitors typically found elsewhere on the same traction inverter cabinet. The farad is the correct unit for specifying and comparing supercapacitor banks because it keeps the numbers readable across the 1-to-3000 farad range these cells cover, while the microfarad value becomes unwieldy past about 10,000 µF. The conversion between the two units therefore flows in both directions for different reasons: farads keep energy calculations compact when using E = ½CV², while microfarads make it easier to read a bill of materials that mixes supercapacitors with smaller bypass and snubber components across different capacitance scales.

Whichever direction the conversion flows, the underlying constraint remains the same: a supercapacitor bank stores far more energy than a same-voltage electrolytic array of similar physical size, and expressing that gap in the appropriate unit prevents a casual misread of the bill of materials from becoming a costly design error.

Try in the tool

Convert Picofarad to Microfarad

How to convert Picofarad to Microfarad

Divide the picofarad value by 1,000,000 to get microfarads, since one microfarad equals exactly one million picofarads.¹ Example: 10,000 pF ÷ 1,000,000 = 0.01 µF. To reverse it, multiply microfarads by 1,000,000.

Common Picofarad to Microfarad conversions

Bridging the six-order-of-magnitude gap

Picofarads and microfarads are six orders of magnitude apart, so a direct conversion spans both the picofarad and nanofarad scales in a single step, and the EIA three-digit marking code on capacitor bodies uses picofarads as its base unit.² That six-order gap is large enough that a value comfortable in one unit becomes unwieldy in the other, which is why the conversion matters every time a designer moves between a component marking and a system schematic.

Direct six-place conversion

Picofarads and microfarads are six orders of magnitude apart. One microfarad is one million picofarads, a factor so large that values comfortable in one unit become unwieldy in the other. A 100,000 pF bypass capacitor is 0.1 µF; both descriptions refer to the same component, but the microfarad form is more compact for circuit documentation. The picofarad form is preserved on the component body as a three-digit code (104), which decodes to 10 × 10^4 = 100,000 picofarads.

A practical check when reading a marked part is to decode the three-digit code into picofarads and then convert once to the documentation unit, because doing the conversion in your head at the bench avoids mixing up a 104 code with a 105 code that is ten times larger. Keeping both the body marking and the schematic value visible side by side makes the translation automatic during assembly.

Spanning three scales in one step

Converting that code to microfarads is a direct division by one million: 100,000 ÷ 1,000,000 = 0.1 µF. That single step spans both picofarad and nanofarad scales simultaneously, so the conversion collapses what would otherwise be two separate unit changes into one clean operation. Engineers who work across the full capacitance range benefit from a conversion that skips the intermediate nanofarad step and lands directly on the system-document unit.

Reading EIA capacitor body codes

The three-digit marking code on ceramic capacitors uses picofarads as the base unit, and misreading the multiplier by even one digit can result in a component that is hundreds of times too small for the intended circuit. Ceramic disc and multilayer ceramic chip capacitors use a three-digit numeric code where the first two digits are significant figures and the third is a power-of-ten multiplier in picofarads. Code 103 is 10 × 10^3 = 10,000 pF = 0.01 µF. Code 104 is 10 × 10^4 = 100,000 pF = 0.1 µF. Code 105 is 10 × 10^5 = 1,000,000 pF = 1 µF.² Each increment of the exponent digit multiplies the capacitance by 10, and converting to microfarads requires knowing the implied picofarad base.

A technician who reads code 104 as 104 picofarads instead of 100,000 picofarads would use a capacitor roughly 962 times too small, catastrophically mismatching a bypass circuit. The error is easy to make when the marking is small and the technician is working from a bench full of unmarked loose components. CapyToolkit converts the decoded picofarad value to microfarads so you can verify the marking against the schematic unit before soldering, catching the misread before it reaches the board.

Parasitic capacitance on high-speed PCBs

Printed circuit board parasitic capacitances are measured in picofarads, and while they are negligible at low frequencies, above a few hundred megahertz their lower effective series inductance can make them the dominant bypass path. The designer who ignores these picofarad-scale parasitics during layout may find that a circuit which simulates correctly fails on the first prototype because the real board adds capacitance that the schematic never showed.

Parasitic comparison in picofarads

Printed circuit board parasitic capacitances are measured in picofarads, and even though the numbers look tiny, they compete with intentional capacitors once the frequency is high enough. Trace-to-plane capacitance is typically 0.5 to 2 pF per centimetre. Via capacitance is around 0.2 to 0.5 pF. Component pin capacitance for digital ICs is 1 to 10 pF.³ These parasitics affect signal integrity at frequencies where their reactance competes with the designed component values, which is why RF and high-speed digital layouts treat every unused pad and long trace as a potential picofarad-scale element that must be accounted for in the timing budget.

When parasitics overtake larger capacitors

A designed 0.1 µF decoupling capacitor (100,000 pF) dominates its nearby 5 pF parasitic by a factor of 20,000, so the parasitic is negligible at low frequencies. Above a few hundred megahertz, however, the parasitic's lower effective series inductance can begin to provide lower-impedance bypass than the larger capacitor's inductance allows. The crossover is governed by the inductance of the component package and the vias, not by the capacitance value itself, which is why a through-hole capacitor and a surface-mount capacitor of the same capacitance can behave very differently at the same frequency.

RF matching networks with picofarad components

Impedance matching networks at radio frequencies use capacitors in the picofarad range because the target impedances require reactances comparable to the signal frequency, and expressing those values in microfarads would add five leading zeros that obscure the scale. At 100 MHz, a 31.8 pF capacitor has a reactance of 50 ohms.⁴ In a pi or T matching network, two such capacitors and a shunt inductor transform the antenna impedance to the amplifier's 50 ohm input, and the picofarad unit keeps every value in the same readable range so the designer can compare components at a glance.

Expressing these 31.8 pF values in microfarads gives 0.0000318 µF, a number with five leading zeros that is harder to compare against a component catalogue. The RF engineer's natural working unit is picofarads; the microfarad conversion is needed only when the same capacitor value appears in a system document that uses microfarads throughout, such as a bill of materials that mixes RF front-end parts with power supply decoupling capacitors.

Crystal oscillator and PLL filter capacitors

Phase-locked loop filter capacitors span the picofarad and nanofarad range, and keeping track of the picofarad-to-microfarad span during component selection prevents the factor-of-one-million substitution errors that plague multi-scale designs. Phase-locked loops use loop filters that include capacitors sized in picofarads and nanofarads, and the charge pump output filter of a typical 2 to 3 GHz PLL might use 270 pF and 33 pF components. Converting 270 pF to microfarads gives 0.00027 µF or 0.27 nF, which exposes how awkward the microfarad form becomes at the low end of the nanofarad range.

The PLL application note may express the same values in picofarads for small capacitors and in nanofarads or microfarads for larger ones, forcing the designer to convert several times while reading a single schematic. Keeping track of the picofarad-to-microfarad span during component selection prevents a factor-of-one-million substitution error, where a 0.27 µF capacitor replaces a 270 pF component.¹ CapyToolkit converts between picofarads and microfarads directly to support this multi-scale component review, so the designer can check every capacitor value against the intended scale in a single pass.

Frequency-dependent impedance across the scale

Because capacitive reactance varies linearly with capacitance, the picofarad-to-microfarad conversion represents a factor of one million in both capacitance and impedance, and understanding this scaling is essential for predicting parasitic resonances at high frequencies. At 1 MHz, a 1 pF capacitor has 159,000 ohms reactance, and a 1 µF capacitor has 0.159 ohms.⁵ The picofarad-to-microfarad conversion is therefore a 10^6 factor in both capacitance and impedance inversely, which means a designer who converts the capacitance value can immediately read off the impedance change without a separate calculation.

When parasitics cause resonances at hundreds of megahertz

Understanding this scaling helps predict whether a parasitic picofarad capacitance will load a microfarad-scale circuit: at low frequencies the answer is no, but above the frequency where the reactances cross, the smaller pF capacitance becomes significant. For most power supply filtering below 10 MHz, the picofarad parasitics are negligible alongside microfarad main capacitors, but at multi-hundred-megahertz switching frequencies, even a few picofarads of layout capacitance can cause resonances and EMI. CapyToolkit converts between picofarads and microfarads so you can evaluate the impedance at the relevant frequency using the unit that keeps the numbers readable, and the conversion makes it straightforward to spot the frequency band where a parasitic that looks harmless at DC suddenly becomes the dominant reactance in the network.

Try in the tool

Convert Nanohenry to Microhenry

How to convert Nanohenry to Microhenry

Divide the nanohenry value by 1000 to get microhenries, since one microhenry equals exactly 1000 nanohenries.¹ Example: 330 nH ÷ 1000 = 0.33 µH. To reverse it, multiply microhenries by 1000.

Common Nanohenry to Microhenry conversions

Nanohenry inductances in RF and high-speed design

At radio and microwave frequencies, every length of wire, PCB trace, via, and component lead has inductance in the nanohenry range, and converting these values to microhenries places them on a common scale with the larger inductors used in power conversion. The conversion matters because a parasitic that looks negligible at low frequencies can dominate the impedance of a 50 ohm trace once the signal edge is fast enough, and expressing the parasitic in microhenries makes that comparison immediate.

Parasitic inductance at high frequency

The nanohenry is the natural unit for parasitic and component inductances at radio and microwave frequencies. Every length of wire, PCB trace, via, and component lead has inductance in the nanohenry range. A 1 mm PCB trace carries about 0.5 to 1 nH, and a standard through-hole resistor's leads contribute 4 to 8 nH. At 1 GHz, even 1 nH of parasitic inductance has a reactance of 6.28 ohms², which is significant in 50 ohm RF circuits and can cause reflections that degrade signal integrity if the designer does not account for the parasitic in the impedance budget.

A useful bench habit is to estimate the trace and lead inductance of a layout before fabrication, because the parasitic often decides whether a 50 ohm path stays matched or starts reflecting energy back toward the source. Converting those nanohenry estimates to microhenries alongside the intentional inductor values keeps the whole impedance budget in one consistent view.

Comparing board parasitics to intentional inductances

Converting nanohenries to microhenries places these tiny inductances on a common scale with the slightly larger inductors used in switching power supplies and resonant circuits, where microhenries are the standard unit. The same conversion helps you compare a board parasitic against the intentional inductance in the schematic, so you can see at a glance whether the parasitic is a negligible fraction of the designed value or large enough to shift the resonant frequency of the network.

RF chokes and matching inductors

Chip inductors for RF applications are specified in nanohenries, and converting to microhenries helps designers understand the 1000-fold scale difference between an RF matching network and a switched-mode power supply inductor. A 22 nH RF choke is 0.022 µH, and a 100 nH shunt inductor in an impedance matching network at 500 MHz has a reactance of about 314 ohms². These small inductors are designed to maintain their inductance and quality factor at high frequencies, with core materials chosen to avoid saturation from signal currents.

Designers comparing an RF matching network's nanohenry inductor against a switched-mode power supply's microhenry inductor need the conversion to understand the 1000-fold scale difference and confirm they are ordering the correct component from the catalogue. Without the conversion, a designer might inadvertently select a component from the wrong product family, because the same numeric value in nanohenries and microhenries represents inductances that differ by a factor of one thousand.

PCB via and pin inductance

A standard PCB via has an inductance of about 0.5 to 1 nH, and while that seems trivially small, at 500 MHz it introduces a 6 percent insertion loss in a 50 ohm trace, making via inductance a first-order signal integrity concern. Via fanout from BGA packages, where many signals must be routed through vias in close proximity, accumulates nanohenry inductance at each transition, so the total parasitic can be several nanohenries even when each individual via looks acceptable on its own.

Via and package parasitics

A standard PCB via through a 1.6 mm board has an inductance of about 0.5 to 1 nH³. A surface-mount IC pin contributes roughly 1 nH. These values seem trivially small until the signal frequency rises. At 500 MHz a 1 nH via inductance has a reactance of 3.14 ohms, which introduces a 6 percent insertion loss in a 50 ohm trace, and the loss grows with the square of the frequency so a 3 GHz signal sees roughly six times the insertion loss of a 500 MHz signal through the same via. Via fanout from BGA packages, where many signals must be routed through vias in close proximity, accumulates nanohenry inductance at each transition.

Why HDI boards address this

High-density interconnect (HDI) boards use microvias with lower inductance to address this, because a microvia can be a fraction of the length of a through-hole via and therefore contributes only a few tenths of a nanohenry instead of a full nanohenry. Understanding nanohenry parasitic inductance and how it compares to the microhenry-range component inductances in the same design is fundamental to signal integrity engineering, and the conversion between the two units lets the designer place every parasitic and every intentional inductance on a single scale.

Power inductor selection for high-frequency converters

Switching power supplies operating at 10 to 100 MHz use power inductors in the 100 to 1000 nH range, and converting to microhenries before searching the catalogue prevents ordering a component from the wrong product family entirely. The converter's switching frequency, output voltage, and ripple current requirement together determine the minimum inductance, and at 50 MHz with a 1 volt output and 100 milliamperes of ripple the required inductance evaluates to a few hundred nanohenries for typical duty cycles.

A 470 nH inductor belongs in the high-frequency RF family, while a 470 µH inductor belongs in the power inductor family, and the two families differ in core material, saturation current, and self-resonant frequency.⁴ Converting nanohenries to microhenries before searching the catalogue prevents ordering a component that is 1000 times too large or too small for the application. CapyToolkit handles this conversion so you can confirm the scale before placing an order, which is especially important when the same numeric value appears in both an RF matching network bill of materials and a power converter bill of materials.

Resonant circuits and LC frequency calculations

For RF work, the standard LC resonant frequency framework substitutes inductance in microhenries and capacitance in picofarads to produce frequency directly in megahertz, and the nanohenry-to-microhenry conversion is the essential first step. LC resonant circuits are used in RF filters, oscillators, and impedance transformers, and the resonant frequency is f = 1/(2π√(LC)), with L in henries and C in farads⁵. For RF work, substituting L in microhenries and C in picofarads gives frequency in megahertz because the 10^-6 × 10^-12 product under the square root introduces factors that cancel to give MHz.

The first step in any LC calculation

Understanding that 330 nH = 0.33 µH is the first step in that calculation, because once the inductance is in microhenries and the capacitance is in picofarads, the resonant frequency in megahertz follows directly without any further prefix conversion. The framework is widely used because it lets the designer read the frequency off the calculation without converting through base SI units, which saves time and reduces the chance of a decimal error. CapyToolkit handles the nanohenry-to-microhenry step so you can focus on the LC arithmetic.

Try in the tool

Convert Microhenry to Millihenry

How to convert Microhenry to Millihenry

Divide the microhenry value by 1000 to get millihenries, since one millihenry equals exactly 1000 microhenries.¹ Example: 100 µH ÷ 1000 = 0.1 mH. To reverse it, multiply millihenries by 1000.

Common Microhenry to Millihenry conversions

Microhenries in switching power supply inductors

Switching power supply inductors are the dominant magnetic component in DC-DC converter designs, and converting their microhenry values to millihenries makes it possible to compare them directly against transformer catalogues that use the larger unit. A 10 µH inductor is 0.010 mH, and a 100 µH inductor is 0.100 mH, so the numerical values shift by three decimal places without changing the underlying component behaviour.

Converter inductors

Switching power supply inductors carry the dominant magnetic component in DC-DC converter designs. Buck, boost, and SEPIC converters all require an inductor that stores and releases energy every switching cycle, and the inductance value directly determines both the physical size of the component and the ripple current that appears at the output. At 500 kHz a typical buck converter uses an inductor of 4.7 to 22 µH, depending on the output current and acceptable ripple.² Converting 10 µH to millihenries gives 0.010 mH, a figure useful when comparing against a transformer catalogue that lists millihenry values.

A quick design check is to confirm the catalogued inductor uses the same unit as the simulation model before ordering, because a 10 µH part and a 0.010 mH part are identical and the mismatch is only in notation. Keeping the millihenry equivalent written next to the bill-of-materials entry prevents a buyer from double-ordering the same value under two different labels.

How inductance determines ripple

The inductance determines the amount of current ripple that flows through the inductor each switching cycle, so a lower inductance value allows more ripple and permits a smaller physical inductor but increases the demand on output capacitors to filter the resulting ripple voltage. Designers therefore trade inductance against capacitor count and board area when optimising a converter for a particular output specification.

LC filter design across the microhenry and millihenry range

Power-line and audio LC filters use inductances that span the microhenry to millihenry range, and expressing all values in a single unit throughout a filter design table prevents the mid-calculation unit slips that corrupt resonant frequency predictions. A 100 µH common-mode choke is 0.1 mH, and a 10 µH differential-mode filter is 0.010 mH, so keeping every entry in one unit removes the risk of mixing scales when calculating the resonant frequency.

Power-line and audio LC filters use inductances from a few microhenries to several millihenries, depending on the target frequency range. A common-mode choke for EMI suppression on a USB cable might have 100 µH (0.1 mH) per winding, placing its impedance above 100 kHz while passing audio and USB signals.³ A differential-mode filter ahead of a Class D audio amplifier might use 10 µH (0.010 mH) inductors to pass audio frequencies below 20 kHz and attenuate switching noise above 300 kHz.⁴ Expressing every inductance in the same unit before applying the resonant frequency formula prevents the off-by-three-orders-of-magnitude errors that occur when one value is read in microhenries and another in millihenries.

RF and IF transformers

Superheterodyne receivers use IF transformers and tuned coils with inductances in the microhenry range, and understanding where the microhenry-to-millihenry boundary falls clarifies which inductance scale a given application occupies. A 455 kHz IF transformer at 680 µH sits well into the upper end of the microhenry scale, while a 10.7 MHz FM IF transformer drops to single-digit microhenries, and the millihenry range only appears in audio-frequency and power-frequency components.

Tuned coils

Superheterodyne radio receivers use intermediate-frequency transformers and tuned coils with inductances in the microhenry range. A 455 kHz IF transformer typically has a primary inductance of around 680 µH (0.68 mH), placing it at the upper end of the microhenry scale just below the millihenry boundary.⁵ At 10.7 MHz for an FM IF the inductance drops to a few microhenries or less as the higher operating frequency permits fewer turns on a smaller core.⁶ Audio-frequency output transformers for valve amplifiers use primary inductances in the henries range, thousands of times larger, so expressing every value in either microhenries or millihenries keeps the relative scale of each component visible at a single glance.

Core material selection and inductance units

Inductor core materials are chosen based on the inductance scale of the application, and knowing whether a required value falls in microhenries or millihenries is the first step in selecting the right core family. Powdered iron, ferrite, and silicon steel each cover a different portion of the inductance spectrum, and picking the wrong material for a given range leads to excessive core loss or premature saturation.

Inductor core materials are characterised by their permeability, which determines the inductance per turn-squared for a given core geometry. Powdered iron cores are used for inductors in the microhenry range at high frequencies because they tolerate DC bias well and have low core loss at megahertz frequencies, making them a practical choice for switching supply inductors operating between 100 kHz and 2 MHz. Ferrite cores are used from the microhenry to millihenry range for switching supply inductors and EMI chokes, offering higher permeability than powdered iron at the cost of a lower saturation flux density.⁷ Laminated silicon steel cores are used for millihenry-to-henry-range power and audio transformers, where the lower operating frequency permits a material with higher saturation but greater core loss at megahertz frequencies.

Energy storage in the microhenry inductor

The energy stored in an inductor each switching cycle is proportional to inductance and the square of peak current, and the millihenry form is often more convenient when comparing against SPICE model parameters. A 10 µH inductor carrying 5 amperes peak current stores 125 microjoules per cycle, which at 500 kHz corresponds to 62.5 watts of power flow, and expressing the inductance in millihenries (0.010 mH) keeps the simulation parameter aligned with the circuit diagram.

The energy stored in an inductor is E = ½LI², with L in henries and I in amperes for energy in joules, so a 10 µH (10^-5 H) inductor carrying 5 amperes peak current stores ½ × 10^-5 × 25 = 125 microjoules per switching cycle.⁸ At 500 kHz that corresponds to 62.5 watts of power flow, matching the converter's rated power for a 12.5 volt output at 5 ampere average current. Converting the inductance to millihenries before entering it into a SPICE model that expects millihenries avoids a factor-of-1000 error in the simulated energy waveform.

Comparing inductors across switching and audio domains

Audio and power electronics engineers work on opposite ends of the inductance spectrum, and expressing both domains in millihenries makes the 100,000-fold ratio between a mains-frequency choke and a switching supply inductor immediately visible. An audio-frequency choke used to block mains hum from a valve amplifier might be 5 henries (5000 mH), while a switching supply inductor for the same amplifier's solid-state power supply might be 47 µH (0.047 mH), and the millihenry form reveals the ratio without requiring a mental conversion to the much larger henry numbers.

Audio engineers and power electronics engineers rarely work in the same inductance range but occasionally need to compare components or adapt a design from one domain to the other. An audio-frequency choke used to block mains hum from a valve amplifier might be 5 henries (5,000,000 µH = 5000 mH),⁹ while a switching supply inductor for the same amplifier's solid-state power supply might be 47 µH (0.047 mH). The 100,000-fold difference in inductance reflects the 100,000-fold difference in operating frequency between 50 Hz mains and 5 MHz switching, and expressing both inductances in millihenries (5000 mH versus 0.047 mH) makes their ratio visible while keeping the numbers free of the extreme exponents that appear in henries or microhenries respectively.

Try in the tool

Convert Millihenry to Henry

How to convert Millihenry to Henry

Divide the millihenry value by 1000 to get henries, since one henry equals exactly 1000 millihenries.¹ Example: 330 mH ÷ 1000 = 0.33 H. To reverse it, multiply henries by 1000.

Common Millihenry to Henry conversions

The henry as the base unit of inductance

The henry is the SI base unit of inductance, and while it is a large value at the scale of most passive components, converting millihenries to henries is the step that places every calculation in the SI form required by Faraday's law and the energy formula. Audio-frequency transformers, relay coils, and slow-switching power-factor correction chokes all occupy the henry and millihenry range, and expressing their values in henries connects them directly to the equations that govern inductance and energy storage.

Base inductance

The henry is the SI base unit of inductance, defined as the inductance of a conductor in which one volt of electromotive force is induced when the current changes at one ampere per second.² It is a large unit at the scale of passive electronic components: even a large power inductor for a mains-frequency power supply might reach only a few henries, while a physically smaller component in a high-frequency switching supply would measure only a fraction of a henry. Audio-frequency transformers, relay coils, and slow-switching power-factor correction chokes occupy the henry and millihenry range, and converting between the two units is a routine step whenever a design moves from a circuit diagram to a simulation or a test report.

A simple safeguard is to annotate the chosen unit next to every inductance value in a design file, because the same numeric value means a thousand times more in henries than in millihenries and the notation alone is easy to misread. Converting once and recording the henry figure keeps later calculations free of the off-by-1000 error that this boundary is known for.

Why formulas need henries

Converting millihenries to henries places a measured or calculated inductance in the SI base unit required by Faraday's induction law and the standard inductor energy formula E = ½LI², both of which use henries.³ Substituting the henry value into these formulas gives results in the standard SI units of volts and joules, so designers who work in millihenries during the component selection phase must convert to henries before running calculations that depend on the base unit.

Transformer inductance and audio frequency response

The primary inductance of an audio transformer determines its low-frequency cutoff, and the workflow of specifying the target in millihenries for winding then converting to henries for simulation is standard practice among transformer designers. At 50 Hz the reactance of a 1 henry primary winding is 314 ohms, which for a transformer driving a 600 ohm load introduces about 1.4 dB of low-frequency rolloff, and the millihenry equivalent of 1000 mH compares more naturally against the output of an LCR meter used during transformer winding verification.

The primary inductance of an audio transformer determines the low-frequency cutoff of the transformer's response, so designers must choose a high enough inductance to avoid shunting signal current through the low primary impedance at the lowest operating frequency.⁴ For a transformer driving a 600 ohm load, the primary reactance of 314 ohms at 50 Hz introduces about 1.4 dB of low-frequency rolloff, and the inductance required to keep that rolloff below 1 dB at 20 Hz is about 4.8 henries. Converting the design target to millihenries gives 4800 mH, which is a value that an LCR meter can display directly during the winding verification step.

Power-factor correction inductors

Passive power-factor correction circuits use inductors in the 100 mH to 2 H range, and converting the millihenry design requirement to henries is the first step in determining the core size, gap length, and winding turns needed to avoid saturation. An inductor of 500 mH (0.5 H) in series with a 230 volt, 50 Hz supply has a reactance of 157 ohms, and the core must support the full mains current without saturating, which is why iron-core inductors for this application are physically large and heavy.

Passive power-factor correction circuits in lamp ballasts and older power supplies use inductors in the 100 mH to 2 H range to shift the current waveform closer to the voltage waveform and reduce reactive power.⁵ Converting the millihenry design requirement to henries and then to an inductive reactance in ohms determines the core size, gap length, and winding turns needed to achieve the target inductance without saturation, and designers typically verify the result against the saturation current rating listed on the core data sheet.

Relay coil inductance and switching transients

When a relay driver switches off, the energy stored in the coil generates a voltage spike that can exceed the transistor's breakdown voltage, and converting millihenries to henries before the energy calculation ensures the catch diode is correctly rated. A 200 mH (0.2 H) coil carrying 100 mA stores 1 millijoule, and without a freewheeling diode this energy produces a voltage spike that can exceed the transistor's breakdown voltage, so designers specify the catch diode's energy and voltage ratings from the coil's henry-scale inductance and operating current.

Relay coils have inductances from tens of millihenries to several henries depending on the required holding current and release time, and the energy stored at switch-off is E = ½LI² where L must be in henries for the result to come out in joules.⁶ Converting millihenries to henries before the energy calculation ensures the result is in joules rather than millijoules, so the diode rating comparison against catalogue values in joules is straightforward and avoids a factor-of-1000 mismatch that would otherwise leave the protection circuit underspecified.

Inductance measurement and LCR meter readings

LCR meters auto-range across microhenries, millihenries, and henries, and converting a millihenry reading to henries for a test report is a routine step in metrology and quality control. A reading of 0.470 H on the meter is the same as 470 mH, and dividing by 1000 converts any millihenry reading to henries for a test report that uses the SI base unit, which is how precision inductance standards and calibration records for test equipment express their values.

LCR meter ranges from microhenries to henries

LCR meters measure inductance by applying a known AC signal and measuring the impedance's inductive component, and the readout appears in the unit that fits the range.⁷ Readouts appear in millihenries for inductors in the tens to hundreds of millihenry range, in microhenries for smaller components, and in henries for large audio or power inductors, so the operator sees the value in the most convenient unit for the component under test. Expressing the result in henries after the measurement connects the reading to the SI base unit used in calibration certificates and inter-laboratory comparisons.

Energy storage in large inductors

Henry-range inductors in power electronics store significant energy, and expressing a millihenry design value in henries before the energy calculation avoids the factor-of-1000 errors that lead to underspecified protection. A 2 H inductor carrying 10 amperes holds 100 joules, which demands careful consideration of fault scenarios because an inductor operating in saturation presents near-zero inductance and removes the current-limiting action that protects the switching transistors.

Henry-range inductors in power electronics store significant energy, and designing against saturation requires knowing the inductance in henries, the peak current in amperes, and the core's saturation flux density. A 2 H inductor carrying 10 amperes holds ½ × 2 × 100 = 100 joules, while a 200 mH inductor carrying 100 mA stores only 1 millijoule, so treating the millihenry value as henries would give a 1000-fold overestimate that could leave the protection circuit dangerously underspecified.

Try in the tool

Convert Henry to Millihenry

How to convert Henry to Millihenry

Multiply the henry value by 1000 to get millihenries, since one henry equals exactly 1000 millihenries.¹ Example: 0.5 H × 1000 = 500 mH. To reverse it, divide millihenries by 1000.

Common Henry to Millihenry conversions

The millihenry as the practical inductance unit

Most passive inductors encountered in electronics have inductances in the millihenry range, and converting henries to millihenries places the value where it can be directly compared against catalogue listings, LCR meter displays, and simulation parameters. The conversion is exact and simple: multiply by 1000, so a 2.5 H audio-frequency common-mode choke becomes 2500 mH and a 0.1 H energy storage inductor is 100 mH, both of which match the scale that component engineers and equipment catalogues use.

Practical inductance notation

Most passive inductors encountered in electronics, from audio-frequency chokes to motor drive filter components, have inductances in the millihenry range. Even the henry-rated audio transformers and PFC inductors are often measured and catalogued in millihenries at the component level, so converting henries to millihenries places the value where it can be directly compared against catalogue listings, LCR meter displays, and circuit simulation parameters that all prefer the millihenry unit.

A practical habit is to record the millihenry value next to the henry value in any design note, because the same component is listed in both units across different documents and the translation is easiest when done once and written down. Keeping the two scales together avoids the confusion that arises when a schematic shows henries while the parts bin is labelled in millihenries.

Matching the scale to the application

A 2.5 H audio-frequency common-mode choke becomes 2500 mH, and a 0.1 H energy storage inductor is 100 mH, so in each case the millihenry form matches the scale that component engineers and equipment catalogues use for inductors in power and audio applications. Expressing every inductance in millihenries before cross-referencing a catalogue or an LCR meter display removes the risk of mixing units when one source uses henries and another uses millihenries.

Motor winding and synchronous machine inductance

Electric motor windings range from millihenries in small servos to henries in large generators, and converting henry-scale datasheet values to millihenries connects them to the drive control parameters that use the smaller unit. A small 50 W servo motor might have a phase inductance of 5 mH (0.005 H), while a large 1 MW synchronous generator might have a synchronous inductance of 0.3 H (300 mH), and motor drive control algorithms use inductance values in millihenries for calculating the bandwidth of the current loop, the back-EMF constant, and the motor's response to step voltage commands.

Electric motors have windings with self-inductances in the millihenry range for small servo motors and in the henry range for large generators and synchronous machines.² Converting a generator's henry-scale datasheet inductance to millihenries connects it to the millihenry parameters used in the drive's control software, avoiding a factor-of-1000 error in the loop gain calculation that would otherwise produce a control loop with ten times too much gain and risk oscillation.

Switched-mode power supply magnetics

Offline switching power supplies use transformer primary inductances in the millihenry range, and converting henry-scale design references to millihenries before comparing against LCR meter readings prevents false-pass decisions during verification. A flyback converter transformer with a primary inductance of 1.5 mH must be verified by measuring the winding on an LCR meter, and the design specification in millihenries matches the measurement immediately without requiring the operator to mentally convert between units.

Offline switching power supplies operating at 50 to 150 kHz use transformer primary inductances of 0.5 to 5 mH (0.0005 to 0.005 H).³ If the design reference expressed the inductance as 0.0015 H, converting to millihenries before the comparison with the meter reading prevents a false-pass decision, because a technician comparing 0.0015 H against a 1.5 mH display might miss the match if the units are not aligned.

Transmission line inductance models

High-voltage overhead transmission lines have distributed inductance of approximately 1 mH per kilometre, and converting the per-kilometre millihenry figure to total henries is the step that connects line parameters to system-level fault and stability analysis. A 200 km line carries about 200 mH (0.2 H) of series inductance per phase, and this inductance combined with the line's series resistance and shunt capacitance determines its characteristic impedance, voltage regulation, and the reactive power it consumes at rated current.

High-voltage overhead transmission lines have distributed inductance of approximately 1 mH per kilometre (0.001 H/km).⁴ Power system tables express line parameters in millihenries per kilometre, while system-level calculations use the total per-phase inductance in henries for fault-level and stability analysis, so converting the per-kilometre millihenry figure by multiplying by line length in kilometres gives total millihenry inductance, then dividing by 1000 converts to henries for per-unit normalisation.

LCR meter verification and inductance standards

Inductance standards used to calibrate LCR meters are specified in either henries or millihenries, and expressing both the reference and the measurement in the same unit simplifies the acceptance decision during calibration. A reference inductor of 0.1 H is listed as 100 mH in the calibration certificate, and the LCR meter's millihenry reading should agree within the meter's stated accuracy, so expressing both the reference and the measurement in millihenries simplifies the acceptance decision.

Reference inductors in the calibration chain

Inductance standards used to calibrate LCR meters are specified in henries or millihenries depending on the standard's value.⁵ Precision inductance standards for national metrology laboratories are expressed in microhenries or millihenries, since henry-level inductors are physically very large and less practical as reference artefacts, and converting the reference's millihenry value to henries is done only when writing the henry-form calibration certificate that connects the measurement to SI.

The henry in electromagnetic constants and coil design

The permeability of free space is expressed in henries per metre, and this constant appears in every formula for solenoid inductance, magnetic force, and the characteristic impedance of free space. The permeability of free space µ0 is approximately 1.2566 × 10^-6 H/m (henries per metre), and it appears in the inductance of a long solenoid (L = µ0 × N² × A / l), in the force between parallel wires carrying current, and in the characteristic impedance of free space (about 377 ohms).

The permeability of free space µ0 is approximately 1.2566 × 10^-6 H/m (henries per metre).⁶ When calculating the inductance of a coil wound on an air core, the henry form of µ0 appears in the formula and the result comes out in henries, ready for the millihenry conversion if needed, so expressing the result in millihenries for component procurement and then converting back to henries for energy or frequency calculations is the natural two-step workflow for coil design.

Try in the tool

Convert Siemens to Millisiemens

How to convert Siemens to Millisiemens

Multiply the siemens value by 1000 to get millisiemens, since one siemens equals exactly 1000 millisiemens.¹ Example: 0.05 S × 1000 = 50 mS. To reverse it, divide millisiemens by 1000.

Common Siemens to Millisiemens conversions

Conductance as the reciprocal of resistance

Conductance measures how easily current flows through a conductor, and converting siemens to millisiemens places the value in a scale that matches typical analogue and biological measurements without requiring multiple leading zeros. In the International System of Units, conductance is measured in siemens, named after Ernst Werner von Siemens, and one siemens is the conductance of a conductor through which one ampere flows for each volt across it, so a 500 ohm resistor has a conductance of 0.002 siemens or 2 millisiemens.

Conductance instead of resistance

Conductance measures how easily current flows through a conductor, which is the direct inverse of resistance, and in parallel circuit analysis conductances add directly, which simplifies calculations that would otherwise require the product-over-sum formula for parallel resistances.² A 500 ohm resistor has a conductance of 1/500 = 0.002 siemens, or 2 millisiemens, and a 10 ohm resistor has a conductance of 0.1 siemens, or 100 millisiemens, so expressing every value in millisiemens keeps the numbers in a readable single-digit to hundreds range.

A quick check when summing parallel branches is to convert each resistance to conductance in millisiemens first, because the conductances then add directly and the total is easier to verify than a nested product-over-sum expression. Keeping the values in millisiemens also makes the result straightforward to compare against a measured conductance on an LCR meter.

Why millisiemens match the natural scale

Converting siemens to millisiemens places the conductance value in a scale that matches typical analogue and biological measurements without requiring multiple leading zeros, and it also makes small conductances easier to compare with datasheet leakage and transconductance figures that are themselves expressed in millisiemens or microsiemens. The millisiemens scale therefore connects the unit of conductance directly to the values that appear on component data sheets and instrument displays.

Conductance in transistor and amplifier specifications

Transconductance relates output current change to input voltage change, and expressing gm in millisiemens while using kilohms for the drain resistor gives amplifier gain directly in volts per volt without any intermediate conversion. A MOSFET biased in saturation might have gm = 20 mS (0.020 S), and the voltage gain of a common-source amplifier is gm × Rd, where Rd is the drain resistor, so using millisiemens and kilohms together produces a dimensionless gain figure directly.

Transistors and FETs are characterised in part by their transconductance gm, which relates output current change to input voltage change.³ Using gm in millisiemens and Rd in kilohms gives gain in volts per volt directly, since mS × kΩ = (10^-3 S)(10^3 Ω) = dimensionless, and this unit combination is a convenient shorthand in amplifier analysis that avoids converting to siemens and ohms just to recover a dimensionless gain figure.

Electrolyte conductance and water quality

In aqueous solutions, conductance depends on ion concentration, mobility, and temperature, and the millisiemens prefix keeps water conductivity values in a readable single-digit to tens range across the spectrum from ultrapure to seawater. Ultrapure water for semiconductor manufacturing has a conductivity of about 0.055 microsiemens per centimetre, tap water ranges from 50 to 500 microsiemens per centimetre, agricultural irrigation water is typically 0.5 to 3 millisiemens per centimetre, and seawater is roughly 50 millisiemens per centimetre.

Water conductivity

In aqueous solutions, conductance depends on ion concentration, mobility, and temperature, so expressing every value in millisiemens per centimetre keeps the tap water figure as a single-digit number and the seawater figure in the tens, both readable at a glance.⁴ Conductivity meters calibrated in millisiemens per centimetre are standard instruments for agricultural, industrial, and environmental water monitoring, and converting from siemens to millisiemens before displaying the reading prevents the leading-zero decimals that would appear if the same values were shown in siemens per centimetre.

Conductance in biological membranes

Ion channel conductance spans from picosiemens per channel to millisiemens per square centimetre at the whole-cell level, and the millisiemens is the natural unit for the Hodgkin-Huxley equations that form the core of mathematical neuroscience. In electrophysiology patch-clamp experiments, individual ion channels have conductances of 10 to 300 picosiemens, while whole-cell membrane conductance sums across thousands of channels to reach microsiemens.

Neuroscience and cell biophysics describe ion channel conductance in picosiemens to nanosiemens per channel, while whole-cell membrane conductance sums across thousands of channels to reach microsiemens. The Hodgkin-Huxley model of the action potential expresses sodium, potassium, and leak conductances in millisiemens per square centimetre, making the millisiemens the natural unit for the core equations of mathematical neuroscience, and converting siemens to millisiemens and then to the smaller prefixes as context demands keeps these multi-scale biological measurements comparable.

Admittance and AC circuit analysis

In AC circuit analysis, expressing all parallel-branch conductances in millisiemens keeps the numbers in a single-digit to hundreds range and allows direct addition without ever writing a leading-zero decimal. A 0.05 S conductor is 50 mS and a 0.002 S conductor is 2 mS, so adding them gives 52 mS without ever writing a leading-zero decimal, which is why millisiemens appear so often in analogue circuit design.

In alternating-current circuit analysis, the complex counterpart of conductance is admittance Y = G + jB, where G is conductance in siemens and B is susceptance also in siemens.⁵ For a parallel RC circuit, the admittance is G + jωC, with G in siemens and C in farads, and expressing G in millisiemens requires careful unit tracking for the full admittance sum since the jωC term must also be in millisiemens for the magnitudes to add consistently.

Try in the tool

Convert Millisiemens to Microsiemens

How to convert Millisiemens to Microsiemens

Multiply the millisiemens value by 1000 to get microsiemens, since one millisiemens equals exactly 1000 microsiemens.¹ Example: 0.5 mS × 1000 = 500 µS. To reverse it, divide microsiemens by 1000.

Common Millisiemens to Microsiemens conversions

The microsiemens in water quality and environmental monitoring

Water conductivity is the most widespread application of the microsiemens and millisiemens, and converting between the two units allows comparisons across instruments with different display ranges and historical records in either unit. Dissolved salts, minerals, and pollutants increase a water sample's ability to carry current, making conductivity a fast proxy for total dissolved solids, and instruments report in microsiemens per centimetre for clean water and millisiemens per centimetre for more saline samples. This dual-unit workflow is standard in environmental labs and field monitoring programs where a single sampling run can produce data spanning three orders of magnitude, and the ability to express every reading in the same unit before comparison prevents the factor-of-1000 errors that quietly corrupt datasets and delay regulatory decisions when teams assume consistent units across instruments.

Engineers who work with both drinking-water and wastewater streams see this pattern daily: a clean-water sample reads in microsiemens while a process-water sample reads in millisiemens, and the conversion step is the only way to plot them on the same trend chart without introducing a factor-of-1000 distortion. The mental discipline of converting before comparing catches errors that would otherwise propagate through regulatory reports and design documents. Every experienced technician knows that skipping the conversion step is the fastest way to produce a report that looks correct but contains a fundamental scale error that can mislead decision makers for months.

Clean water readings

For field technicians, the distinction between microsiemens and millisiemens readings often determines whether a sample is flagged for follow-up or recorded as compliant, and having both units in the same workflow prevents the momentary confusion that can delay a regulatory decision. Drinking water standards specify a conductivity below 2500 µS/cm in the EU,² and aquariums, hydroponics systems, swimming pools, boiler feedwater, and effluent discharge monitoring all rely on conductivity readings in microsiemens or millisiemens. The habit of checking units before recording data saves hours of rework when a compliance officer asks for the original field notes and the units do not match the regulatory threshold.

Laboratory analysts processing large sample batches find that standardising on microsiemens for clean-water samples and millisiemens for saline samples eliminates the mental unit-switching that leads to transcription errors, and CapyToolkit handles the conversion instantly so the focus stays on the data quality rather than the arithmetic. Quality managers who audit lab notebooks report that the most common preventable error is a missing conversion step between microsiemens and millisiemens, and a consistent workflow with an integrated conversion tool removes that entire class of mistakes from the quality record.

Comparing across instruments and historical records

Converting between the two units, which differ by a factor of 1000, allows comparisons across data from instruments with different display ranges or historical records in either unit, and the conversion is especially useful when a clean-water reading in microsiemens must be compared with a saline sample reported in millisiemens. A laboratory instrument that displays microsiemens per centimetre for drinking water can be cross-referenced against a handheld probe that displays millisiemens per centimetre for seawater once both readings are expressed in the same unit.

Galvanic skin response and psychophysiology

The human skin's conductance changes with emotional arousal and thermal regulation, and the microsiemens scale preserves the intuitive five-to-fifty range of electrodermal activity that millisiemens would obscure behind leading zeros. At rest, the conductance measured between two palm electrodes is typically 1 to 20 microsiemens, and during arousal rapid sweat-gland responses can raise conductance by 10 to 50 microsiemens per second, so psychophysiology instruments, biofeedback devices, and lie detection equipment all measure this electrodermal activity in microsiemens.

The human skin's electrical conductance changes with emotional arousal, physical effort, and thermal regulation, and the range is well-suited to the microsiemens unit: resting values near 5 µS and arousal peaks near 30 µS give readable single-digit to double-digit numbers.³ Expressing the same values in millisiemens would give 0.005 to 0.030 mS, which are readable but less intuitive for a scale where the within-person response spans two orders of magnitude from 5 µS at rest to 50 µS during peak arousal.

PCB surface insulation and leakage current

Printed circuit boards exposed to humidity or contamination develop conductive paths across their surfaces that are measured in microsiemens, and a conductor spacing with a conductance above 1 µS (equivalent to 1 megohm by Ohm's law) in high-humidity conditions signals potential leakage current and electromigration between conductors. Expressing the failure threshold in microsiemens rather than megaohms aligns with the metering instruments used during acceptance testing, which display conductance directly, and this alignment prevents the off-by-factor-of-1000 errors that can occur when a test specification in megaohms is compared against a conductance reading in microsiemens.

Aligning failure thresholds with instrument displays

Expressing the failure threshold in microsiemens rather than megaohms aligns with the metering instruments used during acceptance testing, which display conductance directly, so technicians comparing a measured value against the specification see matching units on both sides of the comparison. CapyToolkit keeps millisiemens and microsiemens readings comparable for this kind of quality control work, and converting from megaohms to microsiemens before writing the acceptance criterion removes the risk of a factor-of-1000 mismatch.

Ion channel conductance in electrophysiology

Single ion channels have conductances in picosiemens to nanosiemens, while whole-cell conductances sum to microsiemens and millisiemens, and Hodgkin-Huxley models use the millisiemens-per-square-centimetre unit to express maximal channel conductances. During an action potential, the peak sodium conductance in a typical neuron is approximately 120 millisiemens per square centimetre, and in a large neuron with an extensive dendritic tree the whole-cell conductance can reach several microsiemens.

Single ion channels in biological membranes have conductances measured in picosiemens to nanosiemens, while whole-cell conductances, the sum over thousands of channels, reach into the microsiemens and millisiemens range depending on cell type and activation state.⁴ Hodgkin-Huxley models express maximal channel conductances in millisiemens per square centimetre and convert these to microsiemens when working at the whole-cell level by multiplying by the cell's surface area in square centimetres.

Soil and agricultural conductivity

Soil electrical conductivity is measured in millisiemens or microsiemens per centimetre, and because handheld EC probes are calibrated in either unit depending on the manufacturer, converting between them is essential for comparing field measurements across instruments. Saline soils harmful to most crops have EC values above 4 mS/cm (4000 µS/cm), and healthy loam soils for general agriculture read around 0.15 to 0.50 mS/cm (150 to 500 µS/cm), so expressing every value in the same unit before comparing prevents the factor-of-1000 errors that arise when one probe displays millisiemens and another displays microsiemens.

Soil electrical conductivity is measured in millisiemens per centimetre or microsiemens per centimetre and used by farmers, agronomists, and environmental scientists to estimate soil salinity, moisture content, and clay content.⁵ Handheld EC probes are calibrated in either unit depending on the manufacturer, so a probe calibrated in millisiemens reads 0.3 mS/cm for healthy loam while a probe calibrated in microsiemens reads 300 µS/cm for the same soil, and without converting the two readings look like they differ by a factor of 1000.

Try in the tool
